Flexibles système de refroidissement for BMW 3 Series G20 Berline LCI 320dX (2025)

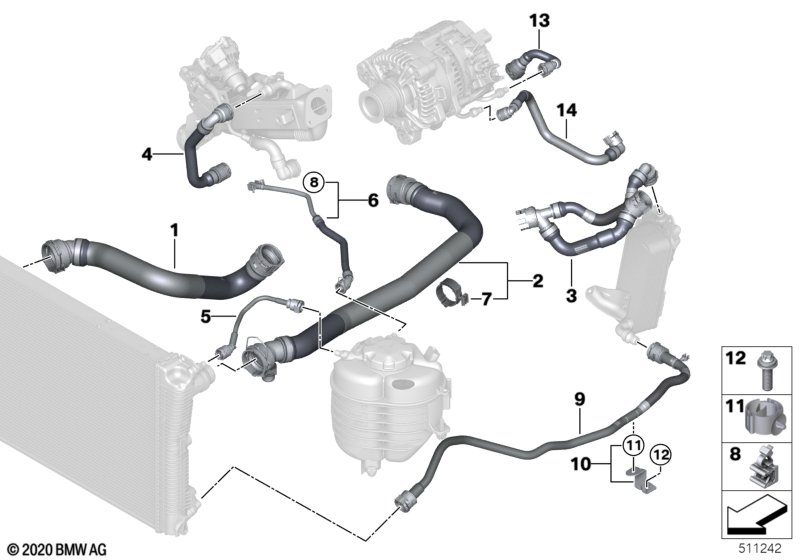

This Flexibles système de refroidissement technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Berline LCI 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flexible radiateur | 1 | 17128581012 | Shop at ECS Tuning | ||||||
| 02 | Flexible pompe liq.refroidissement | 1 | 17128581011 | Shop at ECS Tuning | ||||||
| 03 | Flexible refroidiss.huile boîte vitesses | 1 | 17128580759 | Shop at ECS Tuning | ||||||
| 04 | Câble pompe à liquide de refroidissement | 1 | 11538473704 | Shop at ECS Tuning | ||||||
| 05 | Tube vase d'expansion-radiateur d'eau | 1 | 17128581013 | Shop at ECS Tuning | ||||||
| 06 | Conduite culasse-vase d'expansion | 1 | 17125B3A997 | NoS | Shop at ECS Tuning | |||||
| 07 | Doubleclip | D=8/32 | 1 | 17129455439 | Shop at ECS Tuning | |||||
| 08 | Ruban de câbles avec support | L=200MM | 1 | 34327708473 | Shop at ECS Tuning | |||||
| 09 | Tube radiateur | 1 | 17128580885 | Shop at ECS Tuning | ||||||
| 10 | Support p tuyau refroidissement | 1 | 17129888680 | Shop at ECS Tuning | ||||||
| 11 | Support de tuyau | 1 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| 12 | Vis Torx | M8X25 8.8 ZNS3 | 1 | 07119908535 | Shop at ECS Tuning | |||||
| Pour véhicules avec Système de récupération |
S1CEA=Oui |
|||||||||
| 13 | Câble module de filtre à huile | 1 | 11538473706 | Shop at ECS Tuning | ||||||
| 14 | Câble module de filtre à huile | 1 | 11538594526 | Shop at ECS Tuning | ||||||
Note
- NoS = No Stock (Pièce pas en stock dans magasin central)
