Tuyau d'échappement avant for BMW 7 Series E23 733i (1979)

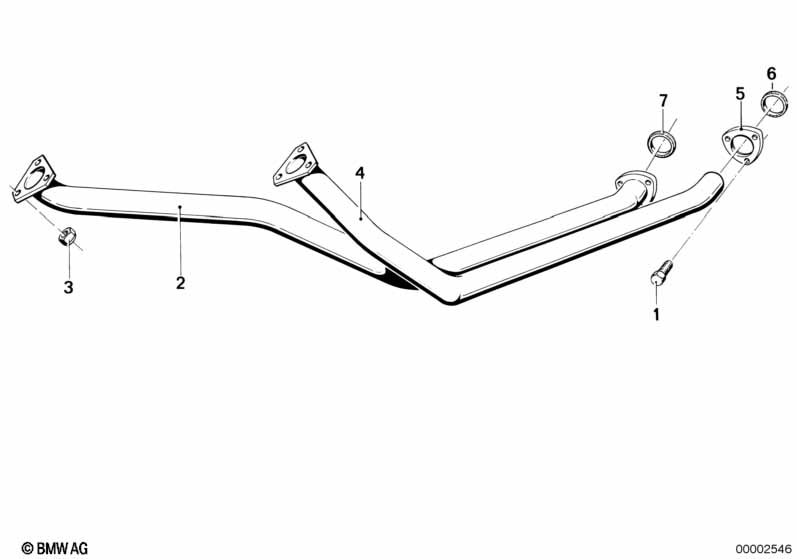

This Tuyau d'échappement avant technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vis six pans | M8X43-8.8-ZNS3 | 6 | 09/1979 | 07119903076 | $0.71 | Shop at ECS Tuning | |||
| 02 | Tuyau d'échappement | 1 | 09/1979 | 18111246588 | $377.21 | arrêté | Shop at ECS Tuning | |||
| 03 | Ecrou à six pans | M10 | 6 | 09/1979 | 18301737774 | $1.65 | Shop at ECS Tuning | |||
| 04 | Tuyau d'échappement | 1 | 09/1979 | 18111246589 | $294.62 | arrêté | Shop at ECS Tuning | |||
| 05 | Bride | 1 | 09/1979 | 18111102366 | $33.77 | Shop at ECS Tuning | ||||
| 06 | Joint conique | 42MM | 1 | 09/1979 | 18111245489 | $5.47 | Shop at ECS Tuning | |||
| 07 | Bague d'étanchéité sans amiante | 1 | 09/1979 | 18119067822 | $7.54 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
