Silencieux arrière for BMW 7 Series E23 733i (1979)

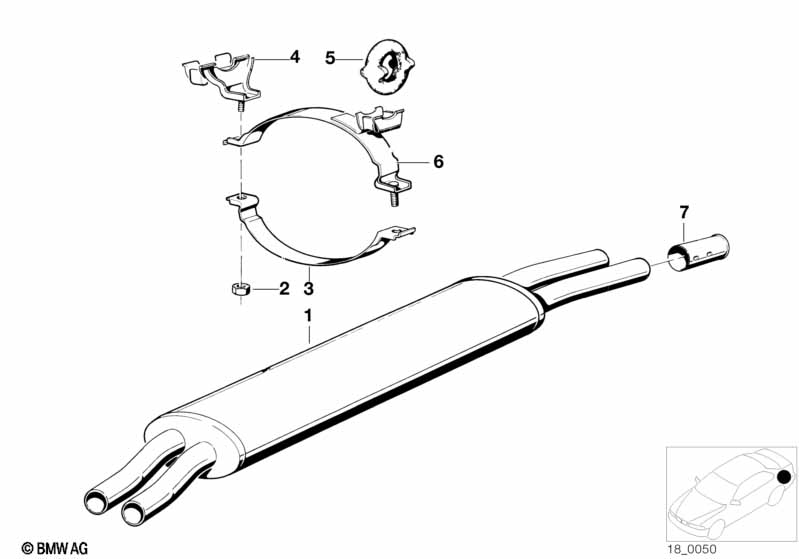

This Silencieux arrière technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Silencieux arrière | 1 | 09/1979 | 18121246359 | $448.75 | arrêté | Shop at ECS Tuning | |||
| 02 | Ecrou à collet | M8-8-SC-ZNNIV | 2 | 09/1981 | 07119906089 | $0.32 | Shop at ECS Tuning | |||
| 02 | Ecrou à collet | M8-8-SC-ZNNIV | 2 | 09/1981 | 07119906089 | $0.32 | Shop at ECS Tuning | |||
| 03 | Collier | 1 | 09/1981 | 18211246628 | $13.14 | Shop at ECS Tuning | ||||
| 03 | Collier | 1 | 09/1981 | 18211246628 | $13.14 | Shop at ECS Tuning | ||||
| 04 | Support | 1 | 09/1981 | 18211246123 | $16.62 | Shop at ECS Tuning | ||||
| 04 | Support | 1 | 09/1981 | 18211246123 | $16.62 | Shop at ECS Tuning | ||||
| 05 | Bague caoutchouc | 2 | 09/1981 | 18211712838 | $5.72 | Shop at ECS Tuning | ||||
| 05 | Bague caoutchouc | 2 | 09/1981 | 18211712838 | $5.72 | Shop at ECS Tuning | ||||
| 06 | Collier | 1 | 09/1981 | 18211246627 | $20.80 | Shop at ECS Tuning | ||||
| 06 | Collier | 1 | 09/1981 | 18211246627 | $20.80 | Shop at ECS Tuning | ||||
| 07 | Embout d'échappement | 42 MM | 2 | 09/1981 | 82119413971 | $8.59 | arrêté | Shop at ECS Tuning | ||
| 07 | Embout d'échappement | 42 MM | 2 | 09/1981 | 82119413971 | $8.59 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Silencieux arrière?
- This technical diagram illustrates the Silencieux arrière within the Système d'échappement group for the 7 Series E23 733i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Silencieux arrière (Part #18121246359).
- Which models use the hardware listed in this Silencieux arrière?
- The hardware and components featured in the Silencieux arrière are specific to the 7 Series E23 733i produced during 1979. These technical specifications ensure that parts like the Silencieux arrière (18121246359) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Silencieux arrière assembly?
- Each item in the Silencieux arrière corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Silencieux arrière by locating its position on the schematic, which then links to the official BMW part number 18121246359 for the Système d'échappement section.
