système d'échappement arrière for BMW 5 Series E39 M5 (1999)

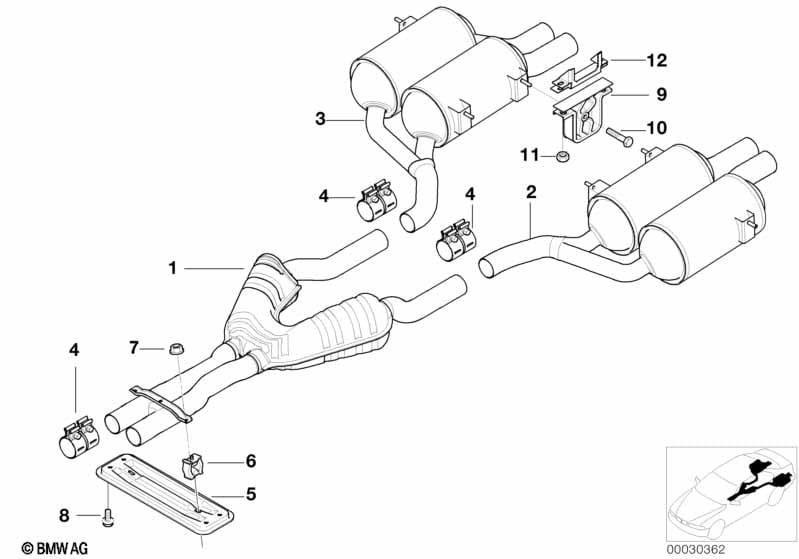

This système d'échappement arrière technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Silencieux central | 1 | 18101406814 | $517.15 | Shop at ECS Tuning | |||||
| 02 | Silencieux arrière gauche | 1 | 09/2001 | 18101406815 | $866.67 | Shop at ECS Tuning | ||||
| 03 | Silencieux arrière droit | 1 | 09/2001 | 18101406816 | $866.67 | Shop at ECS Tuning | ||||
| 04 | Douille de serrage | D=63,5 X 70MM | 4 | 18307536425 | $50.38 | Shop at ECS Tuning | ||||
| 05 | Support de connexion | 1 | 18211745300 | $17.63 | Shop at ECS Tuning | |||||
| 06 | Silentbloc | 2 | 18207832991 | $21.41 | Shop at ECS Tuning | |||||
| 07 | Ecrou à collet | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 08 | Vis six pans avec rondelle | M8X18-U1-8.8 | 4 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 09 | Silentbloc | 6 | 18201401797 | $54.00 | Shop at ECS Tuning | |||||
| 10 | Vis six pans | M8X45-8.8-ZNS3 | 6 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Ecrou à collet | M8-8-SC-ZNNIV | 12 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 12 | Support silentbloc | 6 | 18207839657 | $11.42 | Shop at ECS Tuning |
