système d'échappement arrière for BMW 5 Series F10 LCI 520d (2014)

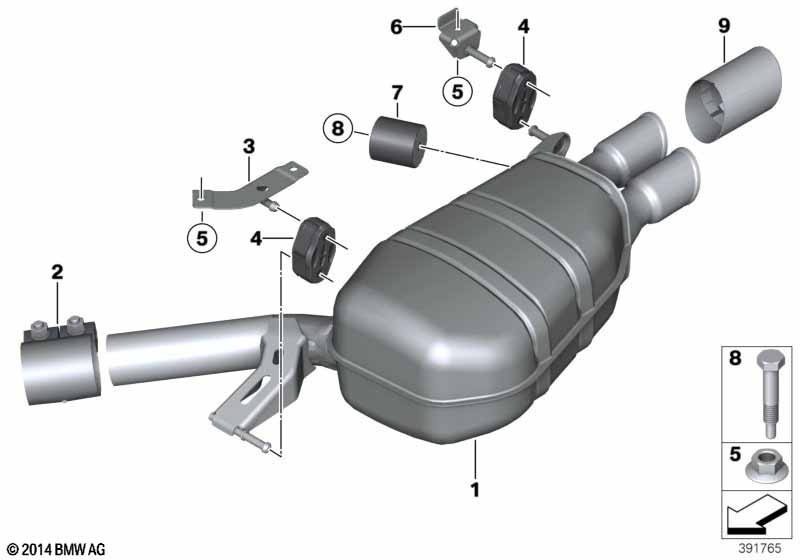

This système d'échappement arrière technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2014.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Silencieux arrière | 1 | 18308510382 | Shop at ECS Tuning | ||||||
| 02 | Douille de serrage | D=65 X 70MM | 1 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
| 03 | Support silencieux arrière gauche | 1 | 18307807117 | Shop at ECS Tuning | ||||||
| 04 | Silentbloc | 2 | 18207578238 | $16.30 | Shop at ECS Tuning | |||||
| 05 | Ecrou à six pans | M12X1,5ZNNIV SI | 1 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 06 | SUPPORT DE SILENCIEUX SECONDAIRE arr | 1 | 18307812409 | Shop at ECS Tuning | ||||||
| 07 | Amortisseur de vibration | 35HZ | 1 | 18307793014 | $54.00 | Shop at ECS Tuning | ||||
| 08 | Vis à collet | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 09 | Embout tuyau d'échappement chrome | 1 | 18307823928 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Modern Line |
P7S1A=Oui |
|||||||||
| 09 | Embout de tuyau d'échapt Alu-Look | 1 | 18308605518 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Kit Sport ou Pack Sport M |
P336A=Oui P337A=Oui |
|||||||||
| 09 | Embout d'échappement chromé noir | 1 | 18308511729 | Shop at ECS Tuning | ||||||
