Commande d'embrayage for BMW R45-R65LS..78-85 R45T

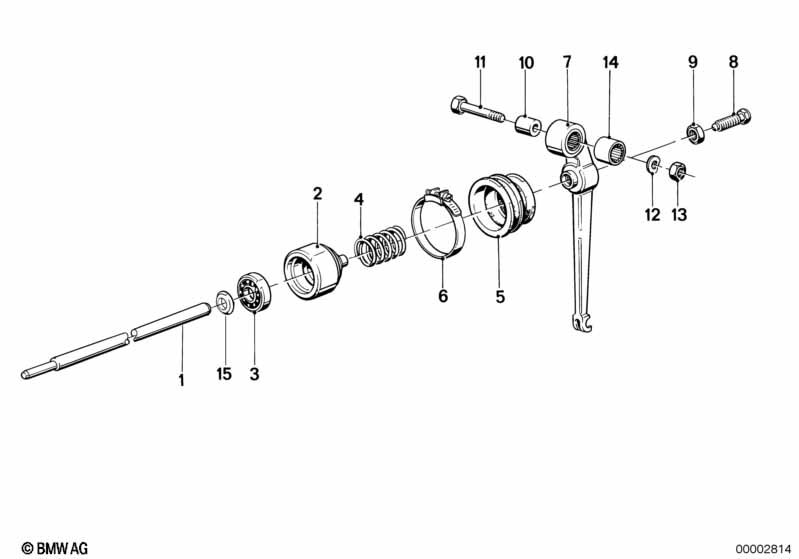

This Commande d'embrayage technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45T. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Barre de poussée | 1 | 09/1980 | 23131241844 | $57.06 | +vieille matière | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Piston | 1 | 09/1980 | 23131464167 | $78.95 | +vieille matière | Shop at ECS Tuning | |||
| 02 | Piston | 1 | 09/1980 | 23131464167 | $78.95 | +vieille matière | Shop at ECS Tuning | |||
| 03 | Roulement à rainure | 51100 | 1 | 09/1980 | 06/1988 | 07119984020 | $41.01 | Shop at ECS Tuning | ||
| 04 | Ressort | 1 | 09/1980 | 23131241849 | $4.50 | Shop at ECS Tuning | ||||
| 05 | Coupelle | 1 | 09/1980 | 23131338731 | $25.22 | Shop at ECS Tuning | ||||
| 06 | Collier | D=40 | 1 | 09/1980 | 23131241872 | $3.48 | Shop at ECS Tuning | |||
| 07 | Manette d'embrayage | 1 | 09/1980 | 23131241847 | $102.81 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 07 | Manette d'embrayage | 1 | 23131242000 | Shop at ECS Tuning | ||||||
| uniquement en combinaison avec | ||||||||||
| -- | Douille à aiguilles | 12X18X16 | 1 | 23131238422 | $13.04 | Shop at ECS Tuning | ||||
| 08 | Vis | 1 | 09/1980 | 23131241848 | $6.88 | Shop at ECS Tuning | ||||
| 09 | Ecrou à six pans | BM8 | 1 | 09/1980 | 07119921077 | $0.13 | arrêté | Shop at ECS Tuning | ||
| 10 | Douille | 1 | 09/1980 | 23131241833 | $20.30 | Shop at ECS Tuning | ||||
| 11 | Vis six pans | M6X35 | 1 | 09/1980 | 07/1985 | 07119901189 | $0.60 | arrêté | Shop at ECS Tuning | |
| 12 | Rondelle élastique noire | B6-ZN | 1 | 09/1980 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 12 | Plaque d'appui | 5.3-140 HV-ZNS | 1 | 09/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 13 | Ecrou à six pans | M6-04-2-ZN | 1 | 09/1980 | 07119921054 | $0.11 | Shop at ECS Tuning | |||
| 14 | Douille à aiguilles | 12X18X16 | 1 | 09/1980 | 23131238422 | $13.04 | Shop at ECS Tuning | |||
| 15 | Douille | 1 | 09/1980 | 23131239891 | arrêté | Shop at ECS Tuning | ||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
