Commande d'embrayage for BMW 1502-2002tii 2002 (1971)

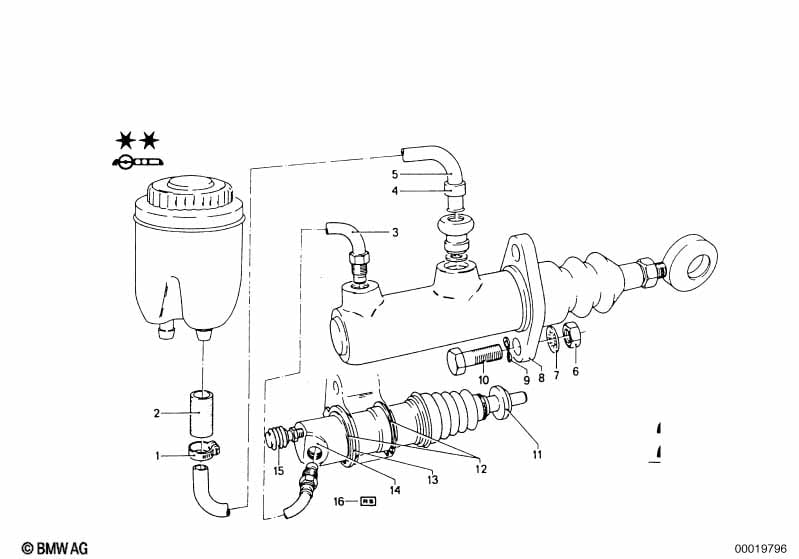

This Commande d'embrayage technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Collier | L=9-12 | 1 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 02 | Tuyau | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 03 | Tuyau | 1 | 21521115955 | $87.29 | Shop at ECS Tuning | |||||
| 04 | Manchon de caoutchouc | 1 | 16124584137 | $2.26 | Shop at ECS Tuning | |||||
| 05 | Tuyau | 1 | 21521114101 | $20.12 | Shop at ECS Tuning | |||||
| 06 | Ecrou à six pans | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Rondelle dentee | J8,2 | 2 | 07119936207 | $0.07 | Shop at ECS Tuning | ||||
| 08 | Cylindre émetteur d'embrayage | D=19,05MM | 1 | 21521104510 | $166.17 | Shop at ECS Tuning | ||||
| 09 | Rondelle elastique | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Vis six pans | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
| 11 | Barre de poussée | 1 | 01/1968 | 07/1976 | 21521102079 | $53.87 | Shop at ECS Tuning | |||
| 12 | Bague de securité | 28X1,5 | 2 | 07119907340 | Shop at ECS Tuning | |||||
| 13 | Tole de fixation | 1 | 21521103489 | arrêté | Shop at ECS Tuning | |||||
| 14 | Cylindre récepteur d'embrayage | D=20,64MM ATE | 1 | 21521102061 | Shop at ECS Tuning | |||||
| 15 | Clapet à poussière | 1 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 16 | Neces repar cylindre emetteur embrayage | D=19,05MM | 1 | 21521102935 | $54.03 | Shop at ECS Tuning | ||||
| 16 | Neces repar cylindre recepteur embrayage | D=20,64 ATE | 1 | 21521103197 | $48.33 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
