Suspension moteur for BMW 5 Series E60 530i (2004)

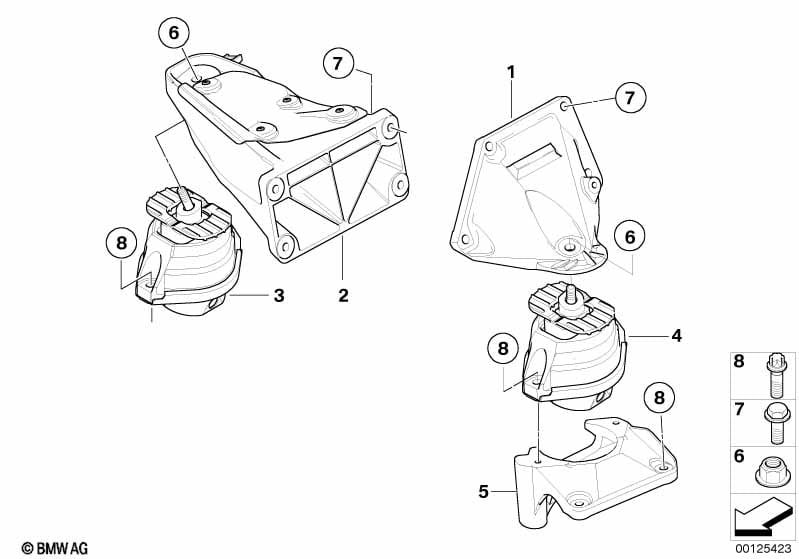

This Suspension moteur technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Longeron moteur, gauche | 1 | 22116761111 | $31.87 | Shop at ECS Tuning | |||||
| 02 | Support moteur droite complet | 1 | 22116766858 | $42.97 | arrêté | Shop at ECS Tuning | ||||
| 03 | support moteur droit | 1 | 22116761090 | $92.50 | Shop at ECS Tuning | |||||
| Nécessaire pour la réparation | ||||||||||
| -- | Vis ASA | M8X35-Z1-ZNS3 | 2 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| -- | Ecrou à six pans | AM10-10-ZNS3 | 1 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 04 | support moteur gauche | 1 | 22116761089 | $92.50 | Shop at ECS Tuning | |||||
| Nécessaire pour la réparation | ||||||||||
| -- | Vis ASA | M8X35-Z1-ZNS3 | 2 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| -- | Ecrou à six pans | AM10-10-ZNS3 | 1 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Console gauche | 1 | 22116761117 | $29.48 | Shop at ECS Tuning | |||||
| 06 | Ecrou à six pans | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Vis six pans avec rondelle | M8X34-ZA-Z1 | 8 | 03/2004 | 07119904117 | $0.47 | Shop at ECS Tuning | |||
| 08 | Vis ASA | M8X35-Z1-ZNS3 | 6 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
