Getrag 242 jeu de roue, pieces detachees for BMW 3 Series E30 318i (1991)

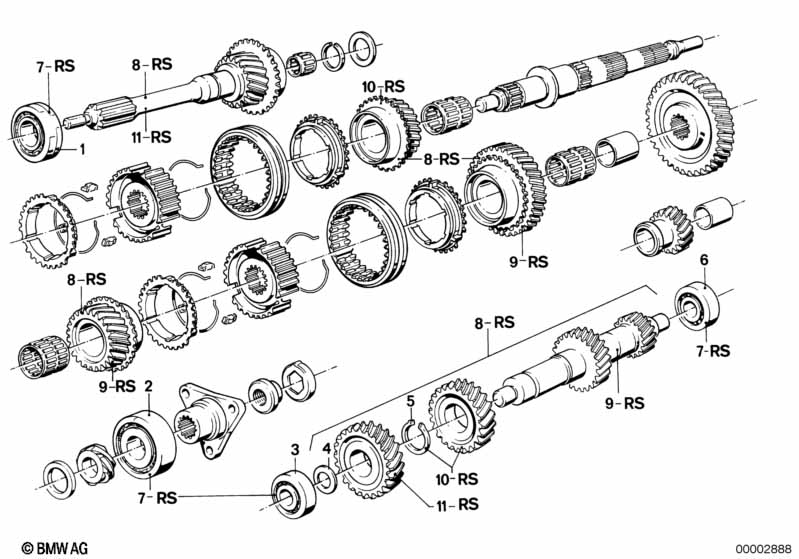

This Getrag 242 jeu de roue, pieces detachees technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roulement à rainure | 62X30X16 | 1 | 23121204198 | $16.12 | Shop at ECS Tuning | ||||
| 02 | Roulement à billes | 72X30X19 | 1 | 23129981441 | Shop at ECS Tuning | |||||
| 03 | Roulement à rainure | 6304 C3 | 1 | 23121231495 | $27.14 | Shop at ECS Tuning | ||||
| 04 | Rondelle entretoise | 20X28X0,5 | X | 23111204583 | $2.75 | arrêté | Shop at ECS Tuning | |||
| 04 | Rondelle entretoise | 20X28X0,4 | X | 23111204584 | $0.66 | Shop at ECS Tuning | ||||
| 04 | Rondelle entretoise | 20X28X0,3 | X | 23121606151 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Bague de securité | 38X1,75 | 1 | 07119934234 | $0.83 | arrêté | Shop at ECS Tuning | |||
| 06 | Roulement à rouleaux | 52X20X15 | 1 | 23121206954 | $51.79 | Shop at ECS Tuning | ||||
| 07 | Nec. reparation de palier de roulement | 1 | 23121205583 | $81.80 | arrêté | Shop at ECS Tuning | ||||
| 08 | Jeu d.repara.je.d.rou.1,2,3,4 vitesses | 1 | 23211207174 | $2259.90 | arrêté | Shop at ECS Tuning | ||||
| 09 | Neces reparat. pignon 1er et 22 vitesses | 1 | 23221206987 | $1026.72 | arrêté | Shop at ECS Tuning | ||||
| 10 | Neces reparation pignon 3 vitesse | 1 | 23221206986 | $554.65 | arrêté | Shop at ECS Tuning | ||||
| 11 | Neces reparation pignon 4 vitesse | 1 | 23211207175 | $1182.96 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
