Getrag 235 carter+pieces a monter for BMW 1502-2002tii 1602 (1975)

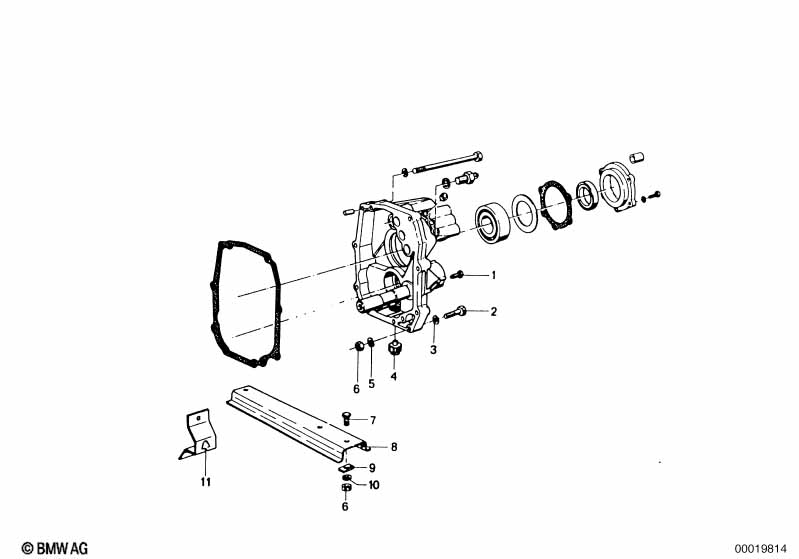

This Getrag 235 carter+pieces a monter technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vis de serrage | M6X15 | 1 | 07119911218 | $0.38 | arrêté | Shop at ECS Tuning | |||
| 03 | Plaque d'appui | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 04 | Vis | 1 | 23111490182 | $7.70 | arrêté | Shop at ECS Tuning | ||||
| 04 | Vis bouchon | M24X1,5 | 1 | 23117546876 | $12.63 | Shop at ECS Tuning | ||||
| 05 | Rondelle elastique | 8,4X15-ZNS3 | 1 | 03/1966 | 12/1975 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| 06 | Ecrou à six pans | M8-8-ZNNIV SI | 3 | 03/1966 | 12/1975 | 07119905515 | $0.16 | Shop at ECS Tuning | ||
| 07 | Vis | M8X18 | 2 | 03/1966 | 12/1975 | 18211101643 | arrêté | Shop at ECS Tuning | ||
| 08 | Support | 1 | 03/1966 | 12/1975 | 18211101620 | arrêté | Shop at ECS Tuning | |||
| 09 | Plaque | 2 | 03/1966 | 12/1975 | 18211101628 | $0.56 | arrêté | Shop at ECS Tuning | ||
| 10 | Plaque d'appui | A8,4X25 | 2 | 03/1966 | 12/1975 | 07147201571 | $0.20 | Shop at ECS Tuning | ||
| 11 | Console | 2 | 03/1966 | 12/1975 | 41121808830 | $17.23 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
