Necessaire de reparation boite vt Getrag for BMW 1502-2002tii 1602 (1975)

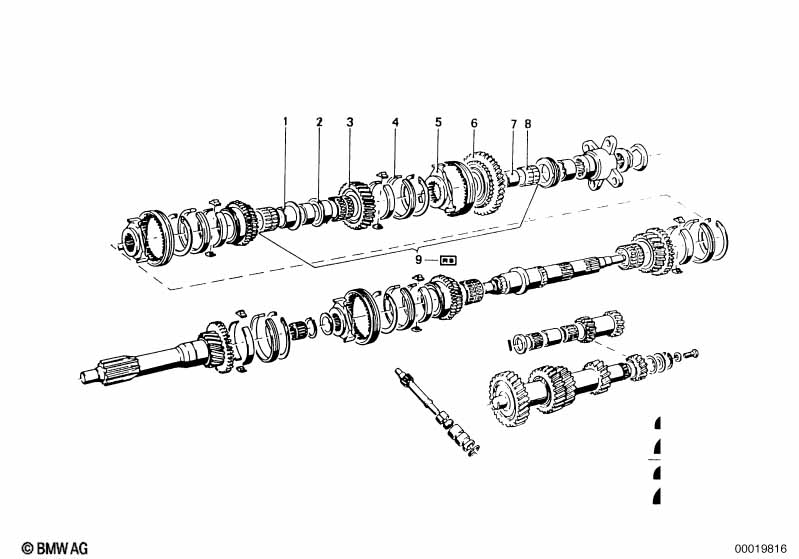

This Necessaire de reparation boite vt Getrag technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Entretoise | 1 | 23221205085 | $76.92 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Roulement à rouleaux | 62X30X16 | 1 | 23121207402 | $133.01 | Shop at ECS Tuning | ||||
| 02 | Entretoise | 2 | 23221205085 | $76.92 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Roulement à rouleaux | 62X30X16 | 1 | 23121207402 | $133.01 | Shop at ECS Tuning | ||||
| 03 | Entretoise | 1 | 23221205085 | $76.92 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Roulement à rouleaux | 62X30X16 | 1 | 23121207402 | $133.01 | Shop at ECS Tuning | ||||
| 04 | Bague de synchro | 1 | 23231200777 | $101.47 | Shop at ECS Tuning | |||||
| 05 | Douille de guidage de 1ere et marche ar | 1 | 23231200747 | $453.10 | Shop at ECS Tuning | |||||
| 06 | Pignon de marche arriere | 1 | 23221200791 | $521.17 | arrêté | Shop at ECS Tuning | ||||
| 07 | Entretoise | 1 | 23221200751 | $33.97 | arrêté | Shop at ECS Tuning | ||||
| 08 | Cage à aiguilles | 35X30X26 | 1 | 23221200794 | $96.24 | Shop at ECS Tuning | ||||
| 09 | Necessaire de reparation pignons de bv | 1 | 23221201543 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
