Necessaire de reparation boite vt Getrag for BMW 1500-2000CS 1800 (1971)

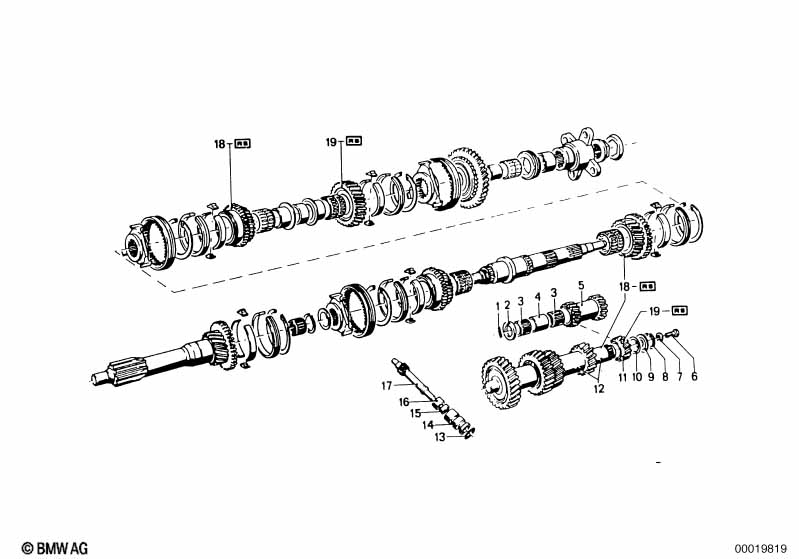

This Necessaire de reparation boite vt Getrag technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Goupille de serrage | 4X18 | 1 | 07119941364 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 18,1X32X4,5 | X | 23221200764 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 18,1X32X4,6 | X | 23221205501 | $7.81 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 18,1X32X4,7 | X | 23221205502 | $7.81 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 18,1X32X4,8 | X | 23221205503 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 18,1X32X4.9 | X | 23221205504 | $23.29 | arrêté | Shop at ECS Tuning | |||
| 03 | Cage à aiguilles | 23X20X18 | 2 | 23221200763 | $33.56 | Shop at ECS Tuning | ||||
| 04 | Douille | 1 | 23221200762 | arrêté | Shop at ECS Tuning | |||||
| 05 | Pignon double | 1 | 23221200761 | arrêté | Shop at ECS Tuning | |||||
| 07 | Jeu rondelle grower 20 | B10 | 1 | 07509064021 | arrêté | Shop at ECS Tuning | ||||
| 08 | Bague de securité | 21 X 1,2 | 1 | 07119934140 | arrêté | Shop at ECS Tuning | ||||
| 09 | Plaque d'appui | 1 | 23221201489 | arrêté | Shop at ECS Tuning | |||||
| 10 | Rondelle entretoise | X | 23221200755 | arrêté | Shop at ECS Tuning | |||||
| 10 | Rondelle entretoise | 21X30X1,6 | X | 23221201492 | $11.38 | Shop at ECS Tuning | ||||
| 10 | Rondelle entretoise | 21X30X1,7 | X | 23221201493 | $11.38 | arrêté | Shop at ECS Tuning | |||
| 10 | Rondelle entretoise | 21X30X1,8 | X | 23221201494 | arrêté | Shop at ECS Tuning | ||||
| 10 | Rondelle entretoise | 21X30X1,9 | X | 23221201495 | $11.38 | Shop at ECS Tuning | ||||
| 11 | Pignon crante 1. vitesse | 1 | 23221200746 | $725.40 | Shop at ECS Tuning | |||||
| 12 | Arbre intermédiaire | 1 | 23211201487 | $666.68 | Shop at ECS Tuning | |||||
| 13 | Joint torique | 14,3X2,4-N-FPM | 1 | 07119904964 | $2.13 | Shop at ECS Tuning | ||||
| 14 | Bague | 19MM | 1 | 23121490117 | $8.31 | Shop at ECS Tuning | ||||
| 15 | Joint d'arbre | 8X14X6 | 1 | 23121490192 | $14.05 | Shop at ECS Tuning | ||||
| 16 | Douille | 1 | 23121630176 | $1.21 | arrêté | Shop at ECS Tuning | ||||
| 17 | Commande du compteur de vitesse | 1 | 23221200416 | $105.44 | Shop at ECS Tuning | |||||
| 18 | J.d.repara.jeu d.roue 2 et 3 vitesses | 1 | 23221201545 | arrêté | Shop at ECS Tuning | |||||
| 19 | Neces reparation pignon de 1er vitesse | 1 | 23221201544 | $774.74 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
