Getrag 235 pieces interieur. de commande for BMW 1502-2002tii 2002 (1971)

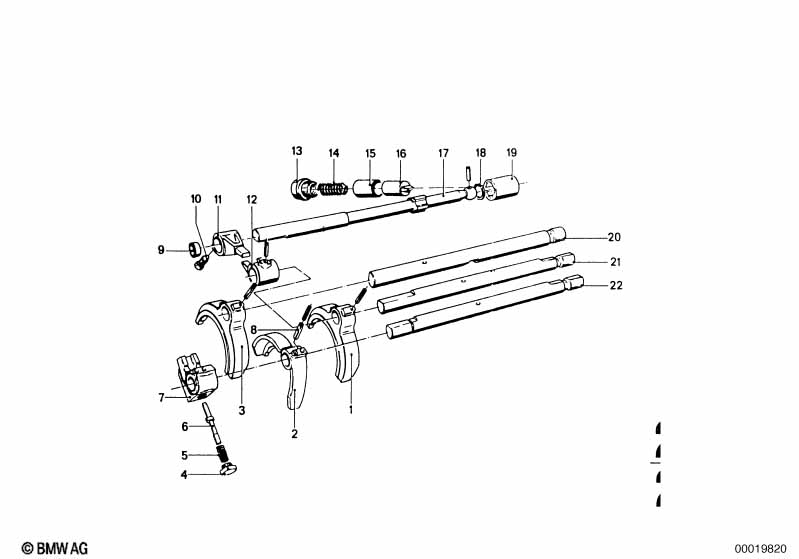

This Getrag 235 pieces interieur. de commande technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fourchette de commande 2 et 3 vitesse | 1 | 23311200800 | arrêté | Shop at ECS Tuning | |||||
| 02 | Fourchette d.tir.1 et vit.marche arr. | 1 | 23311200801 | arrêté | Shop at ECS Tuning | |||||
| 03 | Fourchette d.tir. | 1 | 23311490135 | $66.01 | arrêté | Shop at ECS Tuning | ||||
| 04 | Vis | 1 | 23311200810 | arrêté | Shop at ECS Tuning | |||||
| 05 | Ressort de pression | D=1,4 | 1 | 23311228153 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Boulon d'arret | 1 | 23311200808 | arrêté | Shop at ECS Tuning | |||||
| 07 | Taquet entrainement pignon 1ere et M A | 1 | 23311200807 | arrêté | Shop at ECS Tuning | |||||
| 08 | Jeu goupille de tension 10 | 6X28 | 7 | 07509064307 | arrêté | Shop at ECS Tuning | ||||
| 09 | Couvercle de fermeture | D=15MM | 5 | 07119937228 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Vis | 1 | 23311666236 | $30.95 | arrêté | Shop at ECS Tuning | ||||
| 11 | Doigt d.chang.d.vit. | 1 | 23311200813 | arrêté | Shop at ECS Tuning | |||||
| 11 | Doigt d.chang.d.vit. | 1 | 23311205856 | arrêté | Shop at ECS Tuning | |||||
| 12 | Taquet 2.et 3.vit. | 1 | 23311200805 | arrêté | Shop at ECS Tuning | |||||
| 13 | Vis | M20X1,5 | 1 | 23411666275 | $4.90 | arrêté | Shop at ECS Tuning | |||
| 14 | Ressort | 2,8MM | 1 | 23111666272 | $2.39 | Shop at ECS Tuning | ||||
| 14 | Ressort de pression | D=2,6MM | 1 | 23311205808 | $3.94 | arrêté | Shop at ECS Tuning | |||
| 15 | Douille | 1 | 23121666269 | $11.19 | Shop at ECS Tuning | |||||
| 16 | Boulon | 1 | 23311666266 | $13.38 | arrêté | Shop at ECS Tuning | ||||
| 17 | Axe de fourchette | 1 | 23311205855 | $369.40 | Shop at ECS Tuning | |||||
| 18 | Bague de securité | 1 | 23311490185 | $0.43 | Shop at ECS Tuning | |||||
| 19 | Douille | 1 | 23121200765 | $49.66 | arrêté | Shop at ECS Tuning | ||||
| 20 | Tige de commande 4ieme et 5ieme vitesse | 1 | 23311200802 | $251.10 | arrêté | Shop at ECS Tuning | ||||
| 21 | Tige de commande 2ieme et 3ieme vitesse | 1 | 23311200803 | $251.10 | arrêté | Shop at ECS Tuning | ||||
| 22 | Tige de commande de 1ere vit + marche ar | 1 | 23311200804 | $251.10 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
