ZF 3hp22 changem.vitess/verroui.station. for BMW 5 Series E28 520i (1987)

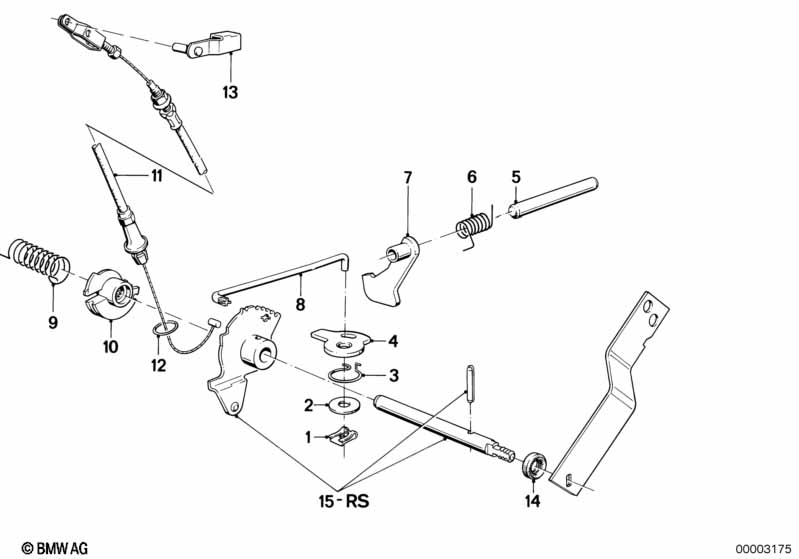

This ZF 3hp22 changem.vitess/verroui.station. technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bague de securité | 1 | 24341206012 | $1.44 | arrêté | Shop at ECS Tuning | ||||
| 01 | Bague de securité | 1 | 24341206012 | $1.44 | arrêté | Shop at ECS Tuning | ||||
| 02 | Plaque d'appui | 1 | 24341207289 | $0.66 | arrêté | Shop at ECS Tuning | ||||
| 02 | Plaque d'appui | 1 | 24341207289 | $0.66 | arrêté | Shop at ECS Tuning | ||||
| 03 | Clips | 1 | 24341206010 | $1.44 | arrêté | Shop at ECS Tuning | ||||
| 03 | Clips | 1 | 24341206010 | $1.44 | arrêté | Shop at ECS Tuning | ||||
| 04 | Came de bloquage | 1 | 24341206714 | $3.66 | arrêté | Shop at ECS Tuning | ||||
| 04 | Came de bloquage | 1 | 24341206714 | $3.66 | arrêté | Shop at ECS Tuning | ||||
| 05 | Boulon | 1 | 24341206006 | $1.66 | arrêté | Shop at ECS Tuning | ||||
| 05 | Boulon | 1 | 24341206006 | $1.66 | arrêté | Shop at ECS Tuning | ||||
| 06 | Ressort de torsion | 1 | 24341206713 | $1.04 | arrêté | Shop at ECS Tuning | ||||
| 06 | Ressort de torsion | 1 | 24341206713 | $1.04 | arrêté | Shop at ECS Tuning | ||||
| 07 | Cliquet | 1 | 24341206712 | $26.37 | arrêté | Shop at ECS Tuning | ||||
| 07 | Cliquet | 1 | 24341206712 | $26.37 | arrêté | Shop at ECS Tuning | ||||
| 08 | Tringle de liaison | 1 | 24341206001 | arrêté | Shop at ECS Tuning | |||||
| 08 | Tringle de liaison | 1 | 24341206001 | arrêté | Shop at ECS Tuning | |||||
| 09 | Ressort de torsion | 1 | 24341206199 | $4.88 | Shop at ECS Tuning | |||||
| 09 | Ressort de torsion | 1 | 24341206199 | $4.88 | Shop at ECS Tuning | |||||
| 10 | Came d'accelerateur | 1 | 09/1982 | 24341208433 | arrêté | Shop at ECS Tuning | ||||
| 10 | Came d'accelerateur | 1 | 09/1982 | 24341208433 | arrêté | Shop at ECS Tuning | ||||
| 11 | Câble d'accélérateur | 1 | 09/1982 | 24341215698 | $40.74 | Shop at ECS Tuning | ||||
| 11 | Câble d'accélérateur | 1 | 09/1982 | 24341215698 | $40.74 | Shop at ECS Tuning | ||||
| 12 | Joint torique | 1 | 24231215455 | $1.81 | Shop at ECS Tuning | |||||
| 12 | Joint torique | 1 | 24231215455 | $1.81 | Shop at ECS Tuning | |||||
| 14 | Joint d'arbre | 10X18X5 | 1 | 24147571213 | $5.20 | Shop at ECS Tuning | ||||
| 14 | Joint d'arbre | 10X18X5 | 1 | 24147571213 | $5.20 | Shop at ECS Tuning | ||||
| 15 | Necessaire de reparation arbre selecteur | 1 | 24341207059 | $30.05 | arrêté | Shop at ECS Tuning | ||||
| 15 | Necessaire de reparation arbre selecteur | 1 | 24341207059 | $30.05 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
