Bw 65 jeux de roues planetaire/sortie for BMW 2500-3.3Li 3.0Si (1975)

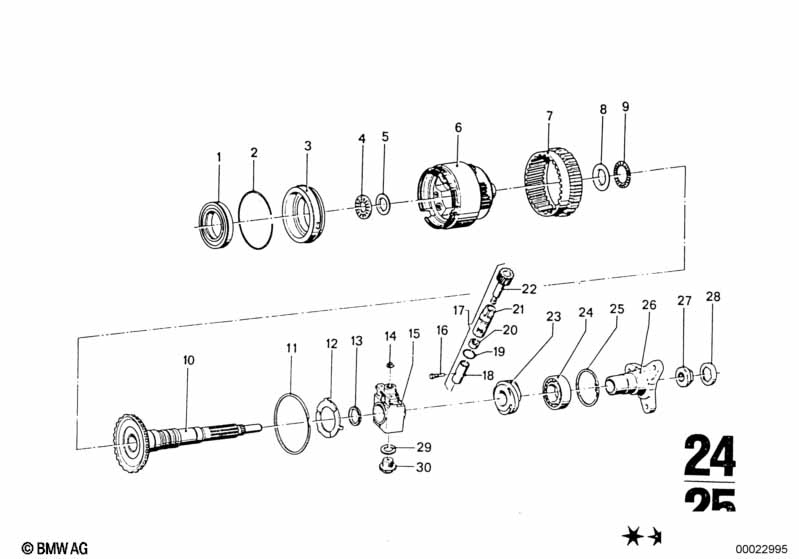

This Bw 65 jeux de roues planetaire/sortie technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roue libre 2eme vitesse | 1 | 24221203363 | arrêté | Shop at ECS Tuning | |||||
| 02 | Circlip | 1 | 24221203362 | arrêté | Shop at ECS Tuning | |||||
| 03 | Anneau | 1 | 24221203359 | arrêté | Shop at ECS Tuning | |||||
| 04 | Palier AX | 1 | 24221203364 | arrêté | Shop at ECS Tuning | |||||
| 05 | Rondelle | 1 | 24221203365 | arrêté | Shop at ECS Tuning | |||||
| 06 | Porte-planetaire | 1 | 24221205407 | arrêté | Shop at ECS Tuning | |||||
| 07 | Pignon arbre d'entrainement | 1 | 24221203371 | arrêté | Shop at ECS Tuning | |||||
| 08 | Rondelle | 1 | 24221203374 | arrêté | Shop at ECS Tuning | |||||
| 09 | Palier AX | 1 | 24221203373 | arrêté | Shop at ECS Tuning | |||||
| 10 | Arbre de sortie | 1 | 24221203366 | arrêté | Shop at ECS Tuning | |||||
| 11 | Circlip | 1 | 24221203372 | arrêté | Shop at ECS Tuning | |||||
| 12 | Rondelle | 1 | 24221205063 | arrêté | Shop at ECS Tuning | |||||
| 13 | Segment | 3 | 24221203377 | arrêté | Shop at ECS Tuning | |||||
| 14 | Circlip | 1 | 24311203510 | arrêté | Shop at ECS Tuning | |||||
| 15 | Regulateur | 1 | 24311203503 | $41.29 | arrêté | Shop at ECS Tuning | ||||
| 16 | Vis six pans | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 17 | Commande du compteur de vitesse | 1 | 24211205066 | arrêté | Shop at ECS Tuning | |||||
| 19 | Joint torique | 19X1,8 | 1 | 24211218739 | $1.58 | arrêté | Shop at ECS Tuning | |||
| 23 | Commande du compteur de vitesse | 1 | 24311203513 | arrêté | Shop at ECS Tuning | |||||
| 24 | Roulement à rouleaux | 1 | 24101203517 | arrêté | Shop at ECS Tuning | |||||
| 25 | Rondelle grower | 1 | 24101203518 | arrêté | Shop at ECS Tuning | |||||
| 26 | Flasque de sortie | 1 | 24101203704 | arrêté | Shop at ECS Tuning | |||||
| 27 | Ecrou à collet | 1 | 24101203525 | $25.11 | arrêté | Shop at ECS Tuning | ||||
| 28 | Plaque de securite | 1 | 24101203526 | $3.83 | arrêté | Shop at ECS Tuning | ||||
| 29 | Rondelle elastique | 1 | 24311203511 | arrêté | Shop at ECS Tuning | |||||
| 30 | Vis | 1 | 24311203512 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
