Bw 65 pieces du boitier d.comman. for BMW 2500-3.3Li 3.0Si (1975)

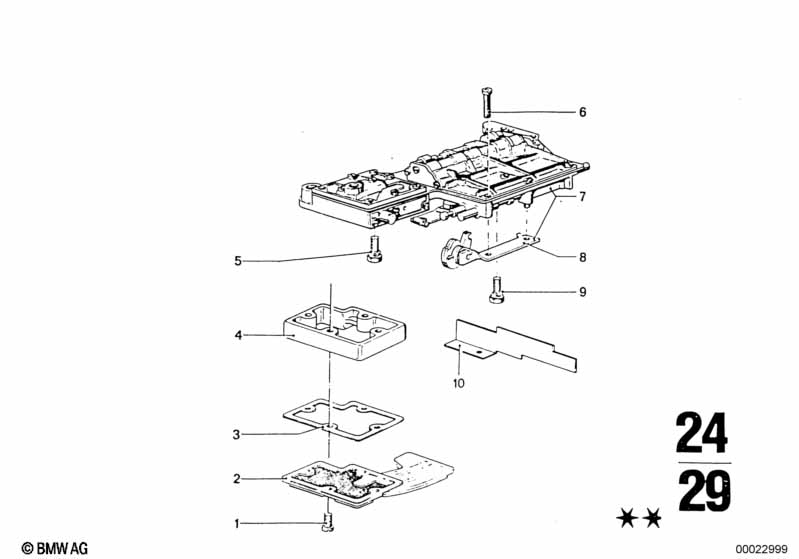

This Bw 65 pieces du boitier d.comman. technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vis | 4 | 24311205357 | arrêté | Shop at ECS Tuning | |||||
| 01 | Vis | 4 | 24331203447 | arrêté | Shop at ECS Tuning | |||||
| 02 | Tamis d'huile | 1 | 24311207079 | $22.88 | arrêté | Shop at ECS Tuning | ||||
| 03 | Joint sans amiante | 1 | 24311204158 | $5.93 | Shop at ECS Tuning | |||||
| 04 | Pièce intermédiaire | 1 | 24311205356 | arrêté | Shop at ECS Tuning | |||||
| 04 | Pièce intermédiaire | 1 | 24311206239 | arrêté | Shop at ECS Tuning | |||||
| 05 | Vis six pans | 1 | 24311203468 | arrêté | Shop at ECS Tuning | |||||
| 06 | Vis | 2 | 24311207405 | arrêté | Shop at ECS Tuning | |||||
| 07 | ES-Boitier de commande | 1 | 24311205434 | arrêté | Shop at ECS Tuning | |||||
| 08 | Came | 1 | 24311207414 | arrêté | Shop at ECS Tuning | |||||
| 09 | Vis six pans | 2 | 24311203469 | arrêté | Shop at ECS Tuning | |||||
| 10 | Tole intermediaire | 1 | 24311205376 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
