ZF 3hp22 pieces de carter/carter d'huile for BMW 2500-3.3Li 3.0Si (1975)

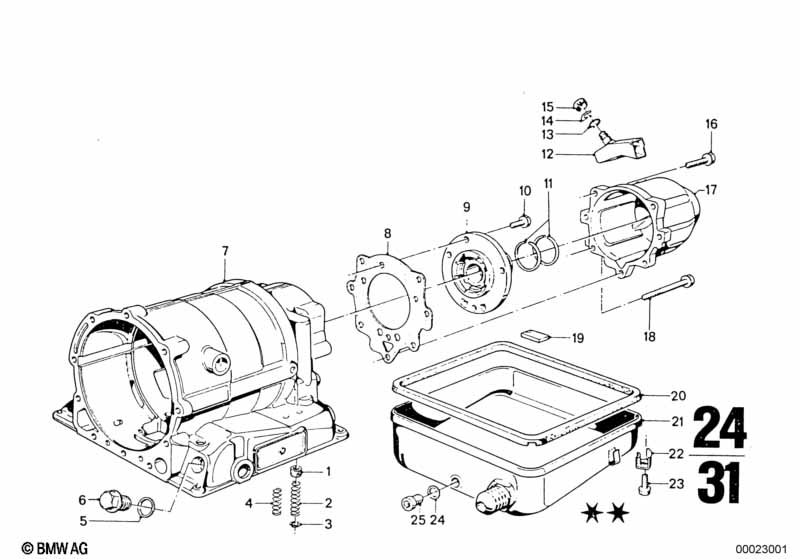

This ZF 3hp22 pieces de carter/carter d'huile technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Douille | 4 | 24341606168 | $4.39 | Shop at ECS Tuning | |||||
| 02 | Ressort de pression | D=0,8/L=26,6 | 2 | 24341606170 | $6.09 | Shop at ECS Tuning | ||||
| 03 | Bague de securité | 10X1 | 4 | 24111218535 | $1.02 | Shop at ECS Tuning | ||||
| 04 | Ressort de pression | D=0,8/L=26,6 | 2 | 24341606170 | $6.09 | Shop at ECS Tuning | ||||
| 05 | Anneau d'étanchéité | 1 | 24111215097 | $1.64 | Shop at ECS Tuning | |||||
| 06 | Vis bouchon | AM18X1,5 | 1 | 07119919246 | $2.40 | arrêté | Shop at ECS Tuning | |||
| 07 | Carter de boîte de vitesses | 1 | 24111215341 | $301.32 | arrêté | Shop at ECS Tuning | ||||
| 08 | Joint sans amiante | 1 | 24111209850 | $2.67 | Shop at ECS Tuning | |||||
| 09 | Bride de regulateur | 1 | 24321207032 | $121.18 | arrêté | Shop at ECS Tuning | ||||
| 10 | Vis six pans avec rondelle | M8X18-Z3 | 3 | 07119915158 | arrêté | Shop at ECS Tuning | ||||
| 11 | Anneau rectangulaire | 2 | 24321216126 | $5.78 | arrêté | Shop at ECS Tuning | ||||
| 12 | Soupape de dépression d'air | 1 | 24111218007 | $10.21 | arrêté | Shop at ECS Tuning | ||||
| 13 | Joint torique | 1 | 24111217139 | $3.13 | Shop at ECS Tuning | |||||
| 14 | Disque de securite | 1 | 24111216347 | $1.30 | arrêté | Shop at ECS Tuning | ||||
| 15 | Couvercle | 1 | 24111205976 | $2.32 | Shop at ECS Tuning | |||||
| 16 | Vis six pans avec rondelle | M8X32-Z3 | 6 | 07119915097 | arrêté | Shop at ECS Tuning | ||||
| 17 | Allongement de la transmission | 1 | 24111215623 | $121.34 | arrêté | Shop at ECS Tuning | ||||
| 18 | Vis six pans | M8X115 | 1 | 24111215651 | $1.14 | arrêté | Shop at ECS Tuning | |||
| 19 | Aimant | 1 | 24111206468 | $4.62 | Shop at ECS Tuning | |||||
| 20 | Joint d'étanchéité | 1 | 24111205903 | $10.78 | Shop at ECS Tuning | |||||
| 21 | Carter d'huile | 1 | 24111206291 | $57.20 | Shop at ECS Tuning | |||||
| 22 | Equerre d'appui | 4 | 24111218679 | $4.47 | Shop at ECS Tuning | |||||
| 23 | Vis six pans avec rondelle | M6X37 | 4 | 24111217130 | $1.58 | Shop at ECS Tuning | ||||
| 24 | Anneau d'étanchéité | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 25 | Vis bouchon | M10X1-ST-ZNS3 | 1 | 07119904393 | $1.89 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
