ZF 3hp22 embrayage d'entrainement A for BMW 2500-3.3Li 3.0Si (1975)

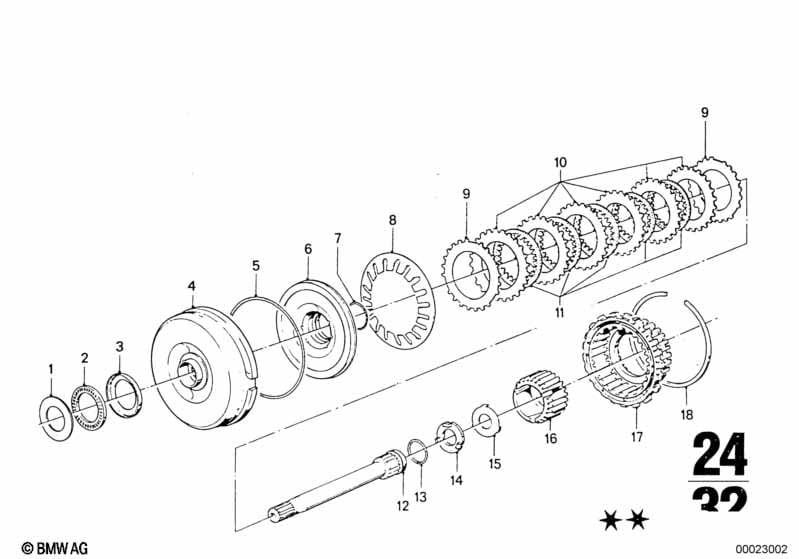

This ZF 3hp22 embrayage d'entrainement A technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Palier AX | 1 | 24231209808 | $10.92 | Shop at ECS Tuning | |||||
| 02 | Palier AX | 1 | 24231209808 | $10.92 | Shop at ECS Tuning | |||||
| 03 | Palier AX | 1 | 24231209808 | $10.92 | Shop at ECS Tuning | |||||
| 04 | Cylindre | 1 | 24211206821 | arrêté | Shop at ECS Tuning | |||||
| 05 | Joint torique | 1 | 24231217083 | $10.11 | arrêté | Shop at ECS Tuning | ||||
| 06 | Piston | 1 | 24231205911 | arrêté | Shop at ECS Tuning | |||||
| 07 | Joint torique | 1 | 24231205913 | $2.92 | arrêté | Shop at ECS Tuning | ||||
| 08 | Ressort à disques | 1 | 24231206824 | $12.63 | Shop at ECS Tuning | |||||
| 09 | Ressort à lamelles | 2 | 24231205919 | $9.60 | Shop at ECS Tuning | |||||
| 10 | Lamelle extérieure | 6 | 24231218784 | $5.96 | Shop at ECS Tuning | |||||
| 11 | Lamelle à garniture de boite automatique | 5 | 24239059361 | $11.95 | Shop at ECS Tuning | |||||
| 12 | Arbre primaire | 1 | 24211205906 | $227.66 | arrêté | Shop at ECS Tuning | ||||
| 13 | Joint torique | 1 | 24341422152 | $1.59 | Shop at ECS Tuning | |||||
| 14 | Rondelle | 1 | 24231205923 | $1.91 | arrêté | Shop at ECS Tuning | ||||
| 15 | Rondelle | 1 | 24231205924 | $1.27 | arrêté | Shop at ECS Tuning | ||||
| 16 | Support de lamelle BVA | 1 | 24231205925 | $85.10 | arrêté | Shop at ECS Tuning | ||||
| 17 | Support de lamelle BVA | 1 | 24231421551 | $96.46 | arrêté | Shop at ECS Tuning | ||||
| 18 | Circlip | 1 | 24231217134 | $1.33 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
