GA6HP19 boîtier pièces amov. trans.int. for BMW 3 Series E90 330xi (2007)

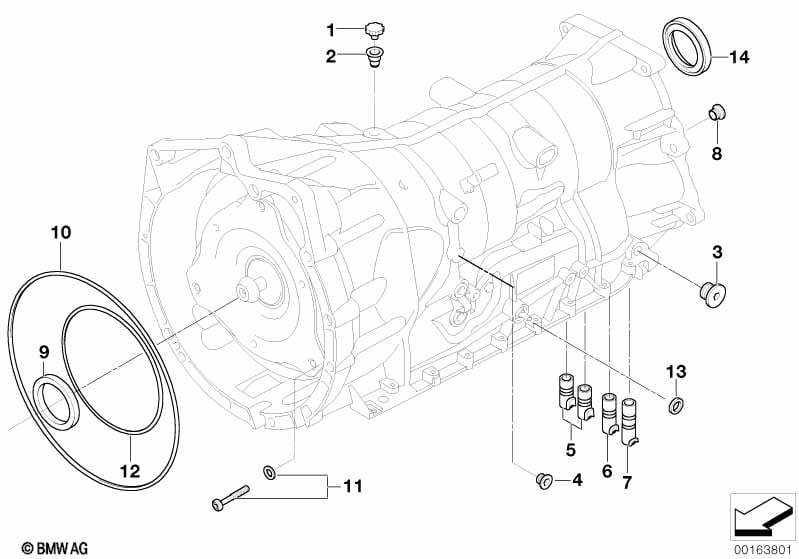

This GA6HP19 boîtier pièces amov. trans.int. technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Couvercle d'aeration | 1 | 24101422142 | $1.95 | Shop at ECS Tuning | |||||
| 02 | Conduite de ventilation | 1 | 24101422141 | $5.93 | Shop at ECS Tuning | |||||
| 03 | Vis bouchon avec joint torique | M18X1,5 | 1 | 24117552349 | $7.65 | Shop at ECS Tuning | ||||
| 04 | Vis bouchon avec joint torique | M10X1 | 1 | 24117552351 | $4.60 | Shop at ECS Tuning | ||||
| 05 | Douille d'etancheite | L=31,20MM | 2 | 24107536339 | $10.71 | Shop at ECS Tuning | ||||
| 06 | Douille d'etancheite | L=35,50 | 1 | 24107536340 | $10.71 | Shop at ECS Tuning | ||||
| 07 | Douille d'etancheite | L=48,90 | 1 | 24107536341 | $10.71 | Shop at ECS Tuning | ||||
| 08 | Vis bouchon avec joint torique | M14X1,5 | 1 | 24007571205 | $6.30 | +vieille matière | Shop at ECS Tuning | |||
| 09 | Joint d'arbre | 45X58X7 | 1 | 24317519352 | $13.53 | Shop at ECS Tuning | ||||
| 10 | Joint torique | 194X3 | 1 | 24317536355 | $7.33 | Shop at ECS Tuning | ||||
| 11 | Vis Torx avec joint | M6X52 | 11 | 24317588743 | $1.95 | Shop at ECS Tuning | ||||
| 12 | Joint torique | 128X3 | 1 | 24201217321 | $9.32 | Shop at ECS Tuning | ||||
| 13 | Joint d'arbre | 10X18X5 | 1 | 24147571213 | $5.20 | Shop at ECS Tuning | ||||
| 14 | Joint d'arbre | 39X72X8 | 1 | 24137542885 | $15.72 | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
