Pieces de fixation de boite de vitesses for BMW 7 Series F02 750Li

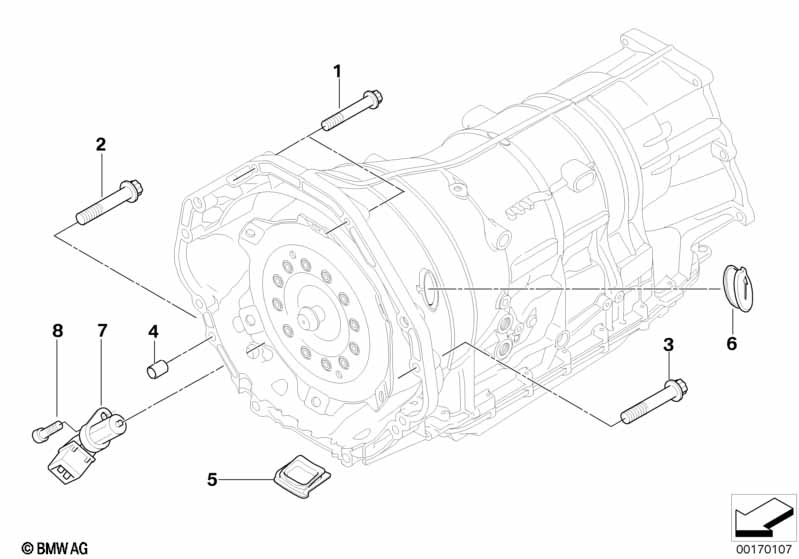

This Pieces de fixation de boite de vitesses technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vis ASA | M8X50-8.8-ZNS3 | 2 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 02 | Vis Torx | M10X55-8.8 ZNS3 | 8 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 03 | Vis Torx | M10X55-8.8 ZNS3 | 2 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Douille d'ajustage | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Capuchon | 1 | 24001422960 | $2.67 | Shop at ECS Tuning | |||||
| 06 | Capuchon | 1 | 24147574832 | Shop at ECS Tuning | ||||||
| 07 | Genera.d'impuls.du comp. tou.vilebrequin | 1 | 13627548995 | $65.38 | Shop at ECS Tuning | |||||
| 08 | Vis ronde à six-pans | M6X16-ZNNIV SI | 1 | 07119907463 | Shop at ECS Tuning |
