ZF 4hp22/24 embrayage d'entrainement E for BMW 7 Series E32 750i (1987)

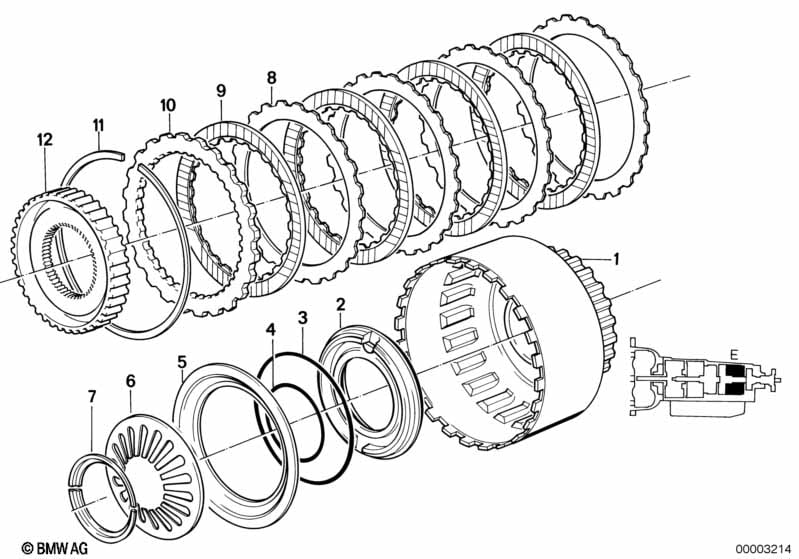

This ZF 4hp22/24 embrayage d'entrainement E technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylindre | 1 | 24231217330 | $172.21 | arrêté | Shop at ECS Tuning | ||||
| 02 | Piston | 1 | 24231215446 | $48.55 | arrêté | Shop at ECS Tuning | ||||
| 03 | Joint torique | 1 | 24231215448 | $9.49 | arrêté | Shop at ECS Tuning | ||||
| 04 | Joint torique | 1 | 24231215447 | $1.56 | arrêté | Shop at ECS Tuning | ||||
| 05 | Plateau de pression d'embrayage | 1 | 24231215445 | $5.52 | arrêté | Shop at ECS Tuning | ||||
| 06 | Ressort à disques | 1 | 24231215444 | $6.89 | arrêté | Shop at ECS Tuning | ||||
| 07 | Anneau de fixation | 2 | 24231215443 | $2.43 | arrêté | Shop at ECS Tuning | ||||
| 08 | Lamelle extérieure | 5 | 24231215440 | $17.69 | arrêté | Shop at ECS Tuning | ||||
| 09 | Lamelle à garniture de boite automatique | 4 | 24231215441 | $11.90 | Shop at ECS Tuning | |||||
| 10 | Disque à lamelles | 1 | 24231215439 | $44.90 | arrêté | Shop at ECS Tuning | ||||
| 11 | Circlip | 1 | 24231215438 | $1.47 | arrêté | Shop at ECS Tuning | ||||
| 12 | Support de lamelle BVA | 1 | 24231217163 | $70.69 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
