Pieces de fixation de boite de vitesses for BMW 3 Series F31 330d (2011)

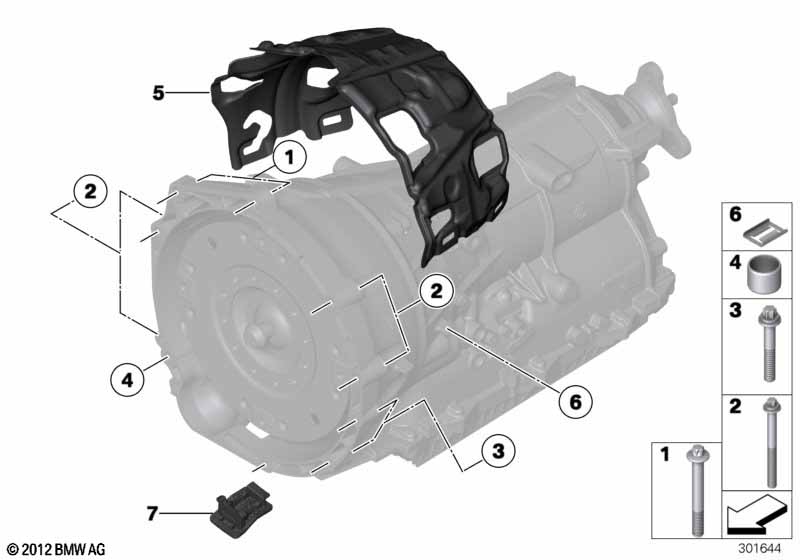

This Pieces de fixation de boite de vitesses technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vis Torx | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Vis Torx | M12X100-8.8ZNS3 | 4 | 23007565047 | Shop at ECS Tuning | |||||
| 03 | Vis ASA | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Douille d'ajustage | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Insonorisation | 1 | 24147605033 | Shop at ECS Tuning | ||||||
| 06 | Ecrou de ressort | 4 | 24147605027 | Shop at ECS Tuning | ||||||
| 07 | Capuchon | 1 | 24147591704 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F31 330d Pieces de fixation de boite de vitesses?
- This technical diagram illustrates the Pieces de fixation de boite de vitesses within the Boîte de vitesses automatique group for the 3 Series F31 330d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Vis Torx (Part #23001222893).
- Which models use the hardware listed in this Pieces de fixation de boite de vitesses?
- The hardware and components featured in the Pieces de fixation de boite de vitesses are specific to the 3 Series F31 330d produced during 2011. These technical specifications ensure that parts like the Vis Torx (23001222893) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pieces de fixation de boite de vitesses assembly?
- Each item in the Pieces de fixation de boite de vitesses corresponds to the numbered list below the illustration. For the 3 Series F31 330d, you can identify the Vis Torx by locating its position on the schematic, which then links to the official BMW part number 23001222893 for the Boîte de vitesses automatique section.
