Palier intermediaire arbre transmission for BMW 2.5CS-3.0CSL 3.0CSi (1973)

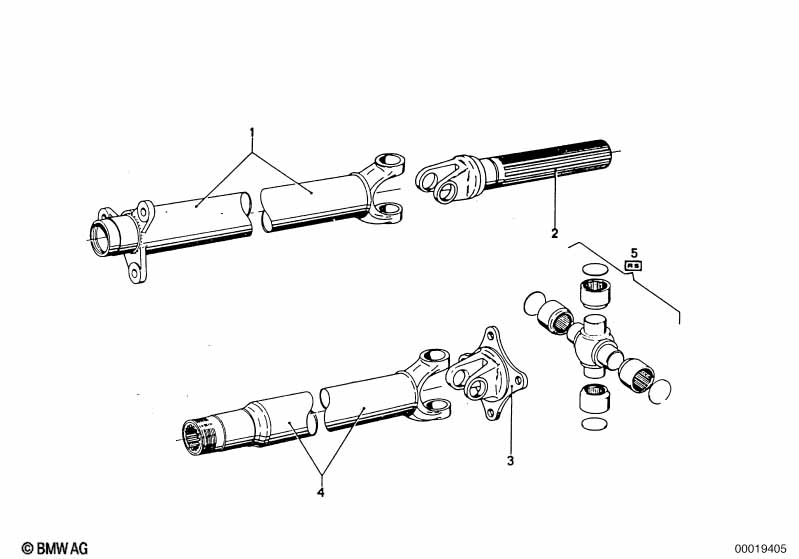

This Palier intermediaire arbre transmission technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Arbre de transmission avant | 1 | 04/1971 | 11/1975 | 26111207659 | arrêté | Shop at ECS Tuning | |||
| 02 | Pièce coulissante | 1 | 26111100924 | arrêté | Shop at ECS Tuning | |||||
| 03 | Pièce de fourche | 1 | 26111206741 | arrêté | Shop at ECS Tuning | |||||
| 04 | Arbre de transmission | 1 | 26111206534 | arrêté | Shop at ECS Tuning | |||||
| 05 | Jeu de reparation croisillon | 2 | 26117518304 | $76.12 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSi Palier intermediaire arbre transmission?
- This technical diagram illustrates the Palier intermediaire arbre transmission within the Arbre de transmission group for the 2.5CS-3.0CSL 3.0CSi produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Arbre de transmission avant (Part #26111207659).
- Which models use the hardware listed in this Palier intermediaire arbre transmission?
- The hardware and components featured in the Palier intermediaire arbre transmission are specific to the 2.5CS-3.0CSL 3.0CSi produced during 1973. These technical specifications ensure that parts like the Arbre de transmission avant (26111207659) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Palier intermediaire arbre transmission assembly?
- Each item in the Palier intermediaire arbre transmission corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSi, you can identify the Arbre de transmission avant by locating its position on the schematic, which then links to the official BMW part number 26111207659 for the Arbre de transmission section.
