Articulation palier de transmission for BMW 3 Series E46 320d (2001)

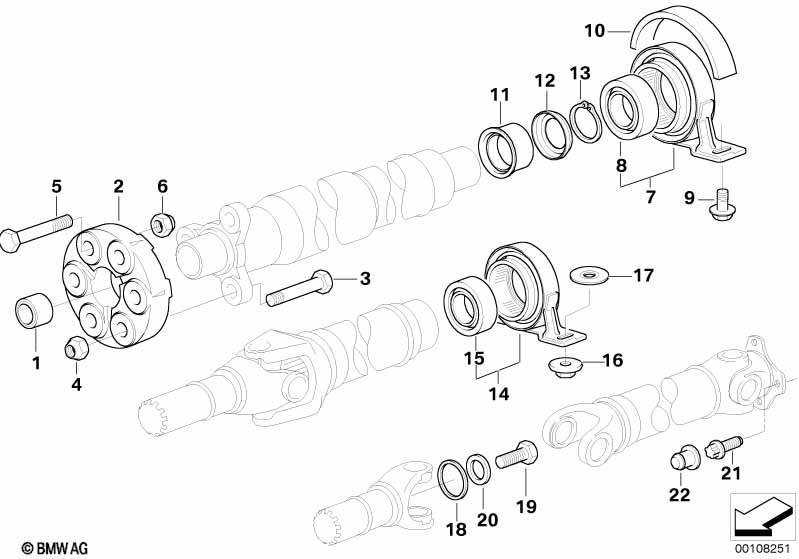

This Articulation palier de transmission technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ne convenant qu'avec boîte de vitesses manuelle Arbre de transmission à cardan en 3 pts |
|||||||||
| 01 | Douille de centrage | 1 | 09/2002 | 26117526611 | $11.32 | Shop at ECS Tuning | ||||
| 02 | Flector | LK=96MM/12 | 1 | 09/2002 | 26117511454 | $120.93 | Shop at ECS Tuning | |||
| LK = cercle des trous | ||||||||||
| 03 | Vis six pans | M12X1,5X58-ZNS3 | 3 | 26117523709 | $2.73 | Shop at ECS Tuning | ||||
| 04 | Ecrou à six pans autobloquant | M12X1,5-10-ZNS3 | 3 | 09/2002 | 26127536563 | $1.00 | Shop at ECS Tuning | |||
| 05 | Vis six pans | M12X1,5X58-ZNS3 | 3 | 26117523709 | $2.73 | Shop at ECS Tuning | ||||
| 06 | Ecrou à six pans autobloquant | M12X1,5-10-ZNS3 | 3 | 09/2002 | 26127536563 | $1.00 | Shop at ECS Tuning | |||
| 07 | Palier intermediaire avant | 1 | 09/2002 | 26121229683 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Bande butyle Ködiplast HV 578-59 | 190X20X8MM | 1 | 09/2002 | 83225A1B482 | Shop at ECS Tuning | ||||
| 09 | Vis six pans avec rondelle | M8X20-ZNS3 | 2 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 10 | Bande butyle Ködiplast HV 578-59 | 190X20X8MM | 1 | 09/2002 | 83225A1B482 | Shop at ECS Tuning | ||||
| 11 | Anneau filete avec anneau de serrage | 1 | 09/2002 | 26117514037 | $12.52 | Shop at ECS Tuning | ||||
| COMPREND Bague de serrage |
||||||||||
| 12 | Disque anti-poussiere | 1 | 09/2002 | 26111226552 | $2.27 | Shop at ECS Tuning | ||||
| 13 | Bague de securité | 1 | 09/2002 | 26123648156 | $0.98 | Shop at ECS Tuning | ||||
| 14 | Palier intermediaire arrière | 1 | 09/2002 | 26121229682 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Rondelle compensat. | H=1MM | 1 | 09/2002 | 26121229538 | Shop at ECS Tuning | ||||
| -- | Rondelle compensat. | H=2MM | 1 | 09/2002 | 26121229539 | $1.77 | Shop at ECS Tuning | |||
| -- | Rondelle compensat. | H=3MM | 1 | 09/2002 | 26121229540 | $1.83 | Shop at ECS Tuning | |||
| -- | Rondelle compensat. | H=4MM | 1 | 09/2002 | 26121229541 | Shop at ECS Tuning | ||||
| 15 | Roulement à rainure | D=55/D=30 | 1 | 09/2002 | 26121225071 | $26.16 | Shop at ECS Tuning | |||
| 16 | Ecrou à embase avec rondelle | M8-8-ZNS3 | 2 | 09/2002 | 26117574872 | $0.80 | Shop at ECS Tuning | |||
| 17 | Rondelle compensat. | H=1MM | 2 | 09/2002 | 26121229538 | Shop at ECS Tuning | ||||
| 17 | Rondelle compensat. | H=2MM | 2 | 09/2002 | 26121229539 | $1.77 | Shop at ECS Tuning | |||
| 17 | Rondelle compensat. | H=3MM | 2 | 09/2002 | 26121229540 | $1.83 | Shop at ECS Tuning | |||
| 17 | Rondelle compensat. | H=4MM | 2 | 09/2002 | 26121229541 | Shop at ECS Tuning | ||||
| 18 | Anneau intermédiaire | D=30X36X1,0-CRH | 1 | 09/2002 | 26117514120 | $2.18 | Shop at ECS Tuning | |||
| 19 | Vis six pans | M12X1,5X25 | 1 | 09/2002 | 07119911694 | $0.82 | Shop at ECS Tuning | |||
| 20 | Plaque d'appui | D=36MM/ZNS3 | 1 | 09/2002 | 26117572710 | $2.27 | Shop at ECS Tuning | |||
| 21 | Vis torx avec ailettes | M10X23-10-ZNS3 | 4 | 09/2002 | 26117571956 | $0.73 | Shop at ECS Tuning | |||
| 22 | Masselotte | 3,0GR./D=12MM | X | 09/2002 | 26117500372 | $5.43 | Shop at ECS Tuning | |||
| 22 | Masselotte | 1,5GR./D=12MM | X | 09/2002 | 26117500373 | $5.43 | Shop at ECS Tuning | |||
