Cadre aux. avant / bras de suspension for BMW 7 Series E23 733i (1984)

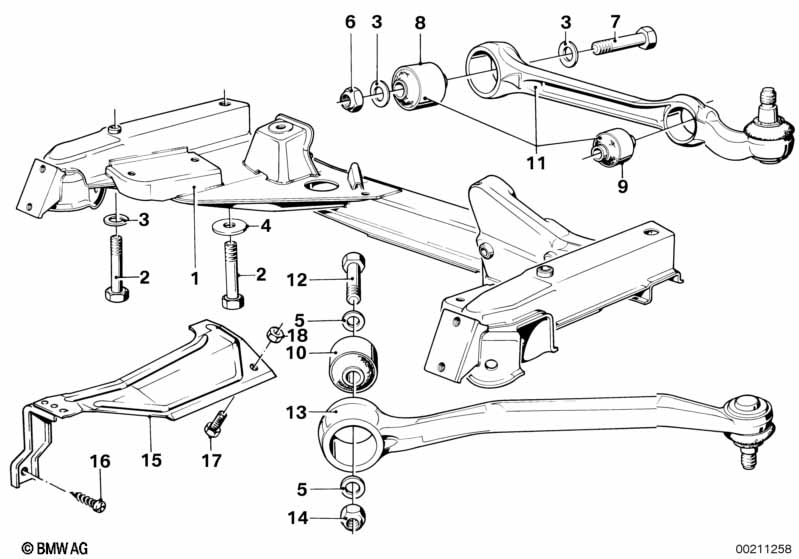

This Cadre aux. avant / bras de suspension technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cadre auxiliaire avant | 1 | 31111123533 | arrêté | Shop at ECS Tuning | |||||
| 01 | Cadre auxiliaire avant | 1 | 31113905545 | Shop at ECS Tuning | ||||||
| 02 | Vis six pans | M12X1,5X100 | 4 | 07119914678 | $2.35 | Shop at ECS Tuning | ||||
| 03 | Rondelle | 12-300 HV-ZNS3 | 6 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Plaque d'appui | 2 | 31111120428 | $0.57 | Shop at ECS Tuning | |||||
| 05 | Plaque d'appui | 4 | 31112606010 | $0.98 | arrêté | Shop at ECS Tuning | ||||
| 06 | Ecrou à six pans autobloquant | M12X1,5-10-PHR | 2 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Vis six pans | M12X1,5X80 | 2 | 07119914660 | $2.09 | Shop at ECS Tuning | ||||
| 09 | Silentbloc | 2 | 31121117025 | $12.89 | Shop at ECS Tuning | |||||
| 10 | Jeu sabot de caoutchouc | 2 | 31129058820 | $56.68 | Shop at ECS Tuning | |||||
| 12 | Vis six pans | M14X1,5X85 | 2 | 07119914829 | $5.82 | Shop at ECS Tuning | ||||
| 13 | Tirant droit | 1 | 31121118356 | $191.15 | Shop at ECS Tuning | |||||
| 13 | Tirant gauche | 1 | 31121118355 | $191.15 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Jeu sabot de caoutchouc | 1 | 31129058820 | $56.68 | Shop at ECS Tuning | |||||
| 14 | Ecrou à six pans autobloquant | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 15 | Tôle pare-chaleur | 1 | 31111123216 | arrêté | Shop at ECS Tuning | |||||
| 16 | Vis à tôle à six pans | ST6,3X13-C-Z2-Z | 1 | 07119901359 | $0.36 | Shop at ECS Tuning | ||||
| 17 | Vis six pans | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 18 | Ecrou à six pans autobloquant | M6-10 ZN | 1 | 05/1986 | 07129922705 | $0.27 | arrêté | Shop at ECS Tuning | ||
| 18 | Ecrou à six pans autobloquant | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
