Barre antiroulis avant for BMW 7 Series E38 750iL

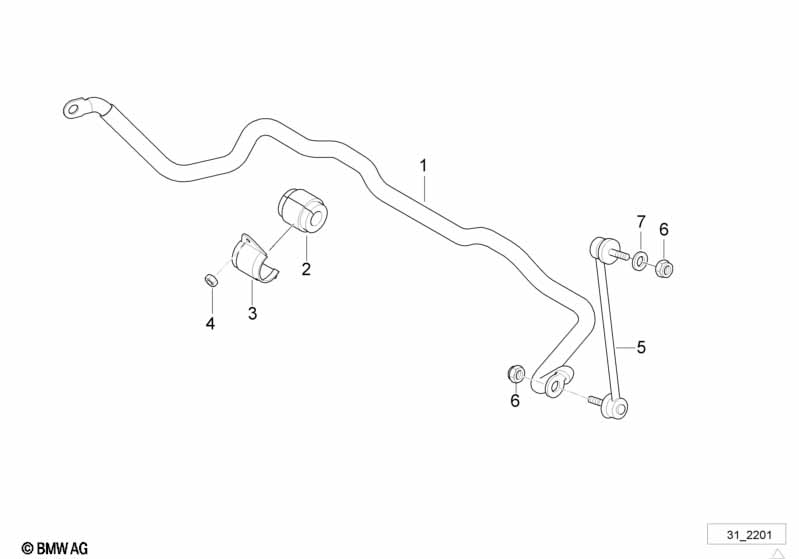

This Barre antiroulis avant technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iL. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Barre antiroulis avant | D=20,5MM | 1 | 31351091495 | $181.17 | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Europe de l'Est ou Kit routes en mauvais état |
L816A=Oui S815A=Oui |
|||||||||
| 01 | Barre antiroulis avant | D=21,5MM | 1 | 31351092914 | $141.73 | +vieille matière | Shop at ECS Tuning | |||
| 02 | Silentbloc de barre stabilisatrice | D=20,5MM | 2 | 31351091555 | $17.00 | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Europe de l'Est ou Kit routes en mauvais état |
L816A=Oui S815A=Oui |
|||||||||
| 02 | Silentbloc de barre stabilisatrice | D=21,5MM | 2 | 31351092915 | $17.00 | arrêté | Shop at ECS Tuning | |||
| 03 | Support de fixation-barre stabilisatrice | 2 | 31351090548 | $4.11 | Shop at ECS Tuning | |||||
| 04 | Ecrou à six pans | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||

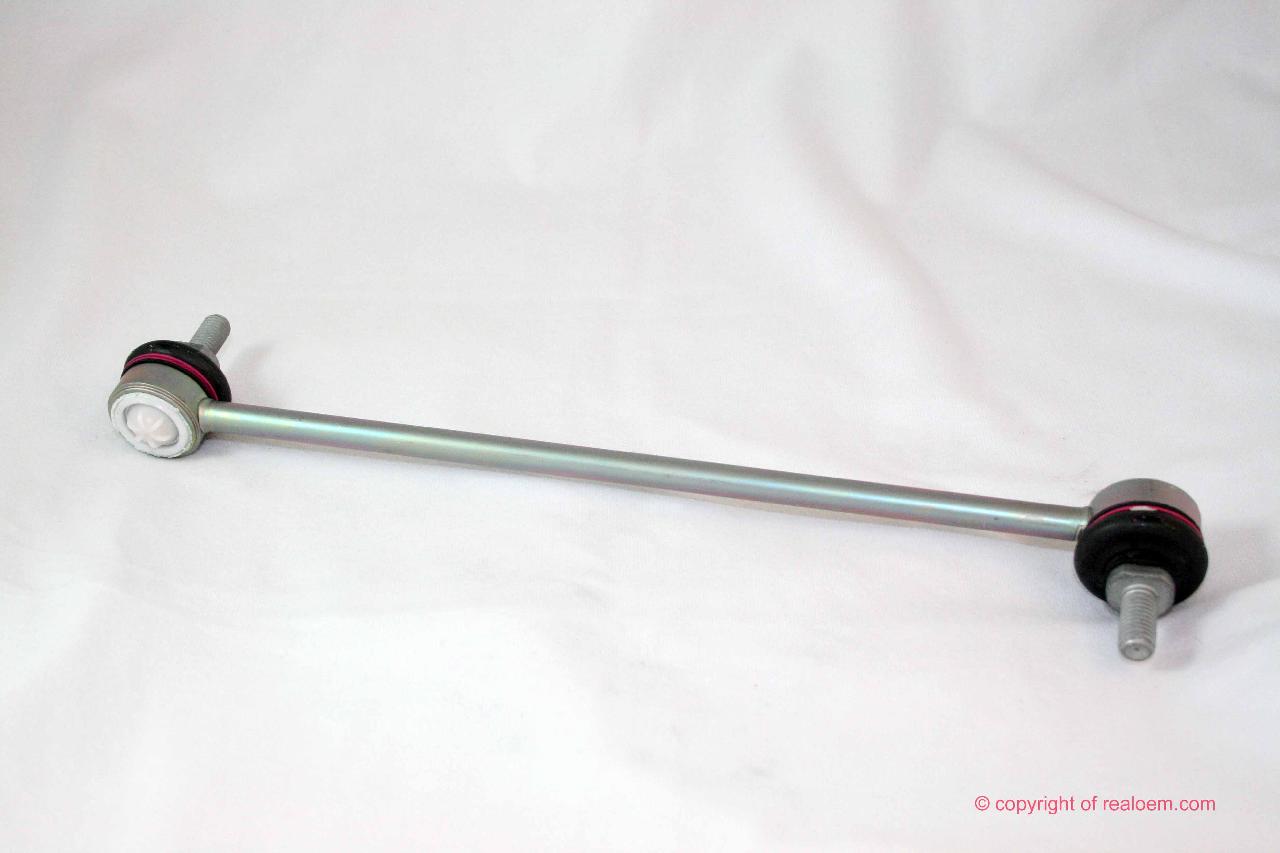

| 05 | Support oscillant avant | 2 | 31351095695 | $46.17 | Shop at ECS Tuning | |||||
| 06 | Ecrou à six pans | M10-10-ZNS3 | 4 | 05/1997 | 07129904473 | $0.47 | Shop at ECS Tuning | |||
| 06 | Ecrou à six pans avec bride | M10-10 ZNS3 | 4 | 05/1997 | 33306760587 | $0.78 | Shop at ECS Tuning | |||
| 07 | Plaque d'appui | A10,5 | 2 | 07119931096 | $0.22 | Shop at ECS Tuning | ||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
