Direction hydraul.-pompe a ailes/pieces for BMW 6 Series E24 633CSi (1979)

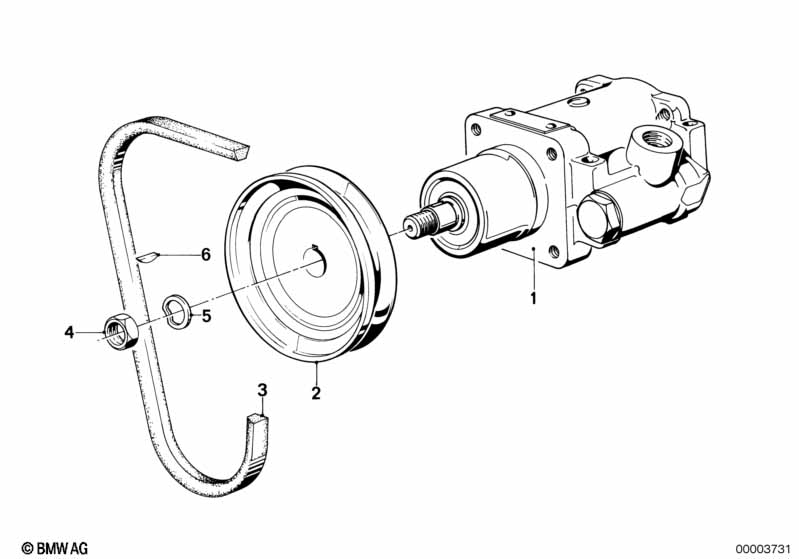

This Direction hydraul.-pompe a ailes/pieces technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Poulie | 1 | 04/1981 | 32411258275 | $63.70 | arrêté | Shop at ECS Tuning | |||
| 03 | Courroie | 9,5X900 | 1 | 04/1981 | 32421711067 | Shop at ECS Tuning | ||||
| 04 | Ecrou à six pans | M14X1,5 | 1 | 04/1981 | 07119901309 | $1.65 | Shop at ECS Tuning | |||
| 05 | Rondelle elastique | B14 | 1 | 04/1981 | 07119932147 | $0.20 | Shop at ECS Tuning | |||
| 06 | Rondelle ressort | 4X5 | 1 | 04/1981 | 07119951453 | $0.36 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Direction hydraul.-pompe a ailes/pieces?
- This technical diagram illustrates the Direction hydraul.-pompe a ailes/pieces within the Direction group for the 6 Series E24 633CSi produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Poulie (Part #32411258275).
- Which models use the hardware listed in this Direction hydraul.-pompe a ailes/pieces?
- The hardware and components featured in the Direction hydraul.-pompe a ailes/pieces are specific to the 6 Series E24 633CSi produced during 1979. These technical specifications ensure that parts like the Poulie (32411258275) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Direction hydraul.-pompe a ailes/pieces assembly?
- Each item in the Direction hydraul.-pompe a ailes/pieces corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Poulie by locating its position on the schematic, which then links to the official BMW part number 32411258275 for the Direction section.
