Direction hydraulique-Tuyaux d'huile for BMW 6 Series E24 M6 (1988)

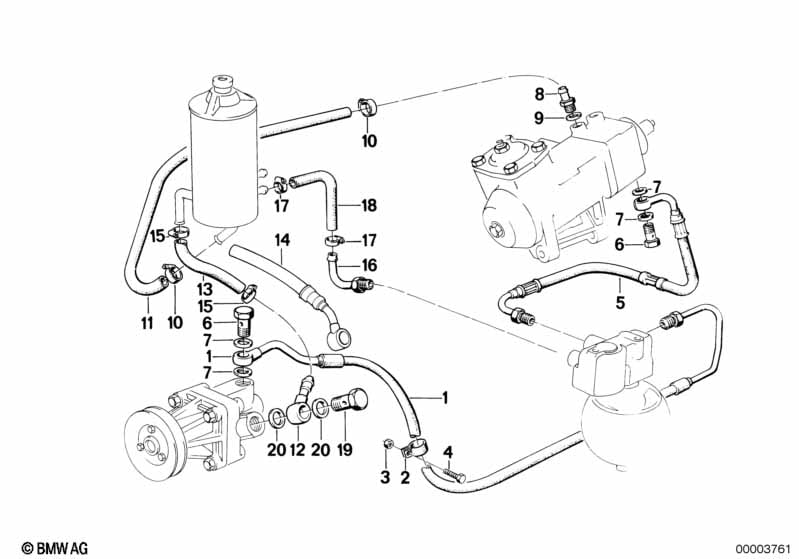

This Direction hydraulique-Tuyaux d'huile technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flexible à pression | 1 | 04/1984 | 32411134806 | arrêté | Shop at ECS Tuning | ||||
| 02 | Collier | D=10/6,4 | 1 | 04/1984 | 12141305028 | $1.58 | Shop at ECS Tuning | |||
| 03 | Ecrou à six pans autobloquant | M6-10 ZN | 1 | 04/1984 | 04/1989 | 07129922705 | $0.27 | arrêté | Shop at ECS Tuning | |
| 03 | Ecrou à six pans autobloquant | M6 ZNNIV SI | 1 | 04/1984 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 04 | Vis six pans | M6X16-8.8-ZNS3 | 1 | 04/1984 | 07119904357 | $0.36 | Shop at ECS Tuning | |||
| 05 | Flexible à pression | 1 | 06/1987 | 32411134252 | $129.85 | arrêté | Shop at ECS Tuning | |||
| 06 | Vis creuse | M14X1,5X26 | 2 | 04/1984 | 32416852469 | Shop at ECS Tuning | ||||
| 07 | Anneau d'étanchéité | A14X20-CUSN | 1 | 04/1984 | 32411093596 | $0.31 | Shop at ECS Tuning | |||
| 07 | Anneau d'étanchéité | A14X20-ALMG | 1 | 04/1984 | 32411129986 | $0.15 | Shop at ECS Tuning | |||
| 08 | Raccord à visser | 1 | 04/1984 | 32411125157 | $4.20 | arrêté | Shop at ECS Tuning | |||
| 09 | Anneau d'étanchéité | A16X22-CUSN | 1 | 04/1984 | 32411093597 | $0.27 | Shop at ECS Tuning | |||
| 10 | Collier | L15-19 | 2 | 04/1984 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 11 | Tuyau | 12X18MM | X | 04/1984 | 32411131524 | $35.95 | Shop at ECS Tuning | |||
| 15 | Collier | L18-24 | 2 | 04/1984 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 16 | Tuyau | 1 | 04/1984 | 34321121527 | $14.42 | arrêté | Shop at ECS Tuning | |||
| 17 | Collier | L12-15 | 2 | 04/1984 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 18 | Tuyau | 6X12MM | X | 04/1984 | 34321119071 | $17.55 | Shop at ECS Tuning | |||
| 19 | Vis creuse | M16X28 | 1 | 04/1984 | 32416852470 | Shop at ECS Tuning | ||||
| 20 | Anneau d'étanchéité | A16X22-CUSN | 1 | 04/1984 | 32411093597 | $0.27 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
