Direction hydraulique Servotronic for BMW 6 Series E24 M6 (1988)

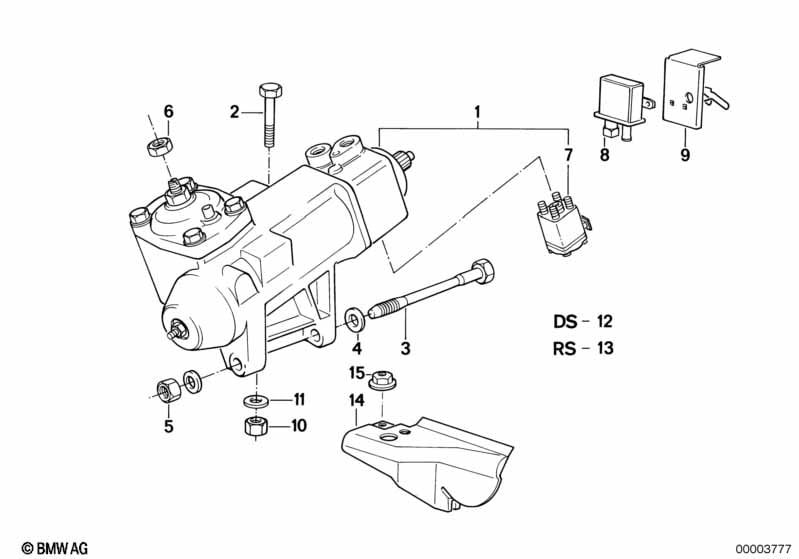

This Direction hydraulique Servotronic technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | NE CONVENANT QU'AVEC SERVOTRONIC | |||||||||
| 01 | ES-Direction Hydraulique | 1 | 32131134107 | $1926.37 | arrêté | Shop at ECS Tuning | ||||
| 02 | Vis six pans | M10X60 | 1 | 07119921502 | $1.18 | Shop at ECS Tuning | ||||
| 02 | Vis six pans | M10X60-10.9ZNS3 | 1 | 07119905162 | $1.78 | Shop at ECS Tuning | ||||
| 03 | Boulon d'ajustement | 1 | 32131136051 | $5.17 | arrêté | Shop at ECS Tuning | ||||
| 04 | Rondelle | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Plaque d'appui | A12.5X30X3MM | 2 | 33331120662 | $0.35 | arrêté | Shop at ECS Tuning | |||
| 05 | Ecrou à six pans autobloquant | M12X1,5-10-PHR | 1 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Ecrou à collet | 1 | 32131130398 | $3.08 | Shop at ECS Tuning | |||||
| 07 | Convertisseur servotronic | 1 | 32411134770 | $239.28 | Shop at ECS Tuning | |||||
| 08 | Boîtier de commande servotronic | 1 | 32431162705 | $213.23 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Kit de reparation | 1 | 32431162736 | $81.04 | Shop at ECS Tuning | |||||
| 09 | Support | 1 | 32411135052 | $10.38 | arrêté | Shop at ECS Tuning | ||||
| 10 | Ecrou à six pans autobloquant | M10-10 ZNS3 | 1 | 33326768900 | $0.78 | Shop at ECS Tuning | ||||
| 11 | Plaque d'appui | A10,5X22 | 1 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 12 | Pochette de joints petite | 1 | 32131135019 | $87.00 | arrêté | Shop at ECS Tuning | ||||
| 12 | Pochette de joints complete | 1 | 32131135020 | $86.32 | Shop at ECS Tuning | |||||
| 13 | Necessaire de montage | 1 | 32131134769 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
