Colonne de direction-col.creuse/reveteme for BMW 6 Series E24 633CSi (1979)

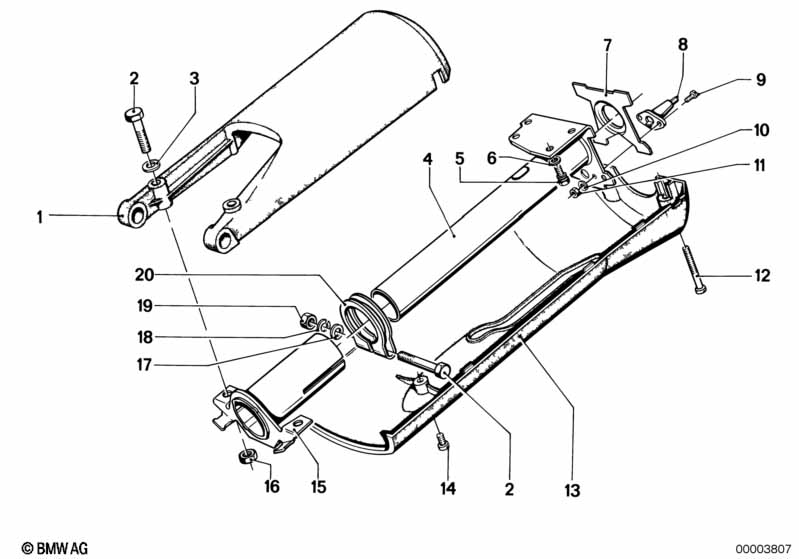

This Colonne de direction-col.creuse/reveteme technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Habillage partie supérieure | 1 | 09/1982 | 32311108596 | $124.99 | Shop at ECS Tuning | ||||
| 02 | Vis six pans | M8X45-8.8-ZNS3 | 3 | 09/1982 | 07119902955 | $0.62 | Shop at ECS Tuning | |||
| 03 | Plaque d'appui | 8,4X16X1,6-ZNNV | 2 | 09/1982 | 07119907030 | Shop at ECS Tuning | ||||
| 04 | Tube-colonne de direction | 1 | 09/1982 | 32311106736 | $38.22 | arrêté | Shop at ECS Tuning | |||
| 05 | Boulon fileté de rupture | M6X14 | 4 | 09/1982 | 32321109641 | $1.39 | Shop at ECS Tuning | |||
| 06 | Rondelle élastique noire | B6-ZN | 4 | 09/1982 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 06 | Plaque d'appui | 5.3-140 HV-ZNS | 4 | 09/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 07 | Support | 1 | 09/1982 | 32311108670 | $1.12 | arrêté | Shop at ECS Tuning | |||
| 08 | Charbon de contact | 1 | 09/1982 | 32331350750 | $7.64 | arrêté | Shop at ECS Tuning | |||
| 09 | Vis à tête bombée | M5X12-ZN | 2 | 09/1982 | 07119907627 | $0.43 | Shop at ECS Tuning | |||
| 10 | Rondelle elastique | B5 | 2 | 09/1982 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 11 | Ecrou à six pans | M5-8-ZNNIV SI | 2 | 09/1982 | 07119905729 | Shop at ECS Tuning | ||||
| 12 | Vis à tête bombée | M6X55 | 2 | 09/1982 | 07119906437 | $0.45 | arrêté | Shop at ECS Tuning | ||
| 13 | Revetement inferieur | 1 | 09/1982 | 32311152990 | $41.47 | Shop at ECS Tuning | ||||
| 14 | Vis cylindrique | M6X8 | 1 | 09/1982 | 07119906436 | $0.20 | Shop at ECS Tuning | |||
| 15 | Tube-colonne de direction | 1 | 09/1982 | 32311115348 | $10.27 | arrêté | Shop at ECS Tuning | |||
| 16 | Ecrou à six pans autobloquant | M8-8-ZNNI SI | 2 | 09/1982 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 17 | Plaque d'appui | 8,4 | 1 | 09/1982 | 07119931697 | $0.40 | Shop at ECS Tuning | |||
| 18 | Rondelle elastique | 8,4X15-ZNS3 | 1 | 09/1982 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 19 | Ecrou à six pans | M8-8-ZNS3 | 1 | 09/1982 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 19 | Ecrou à six pans | M8-8-ZNNIV SI | 1 | 09/1982 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 20 | Collier | 1 | 09/1982 | 32312682215 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
