Colonne de direct.-arbre col.direct.inf. for BMW 6 Series E24 M6 (1988)

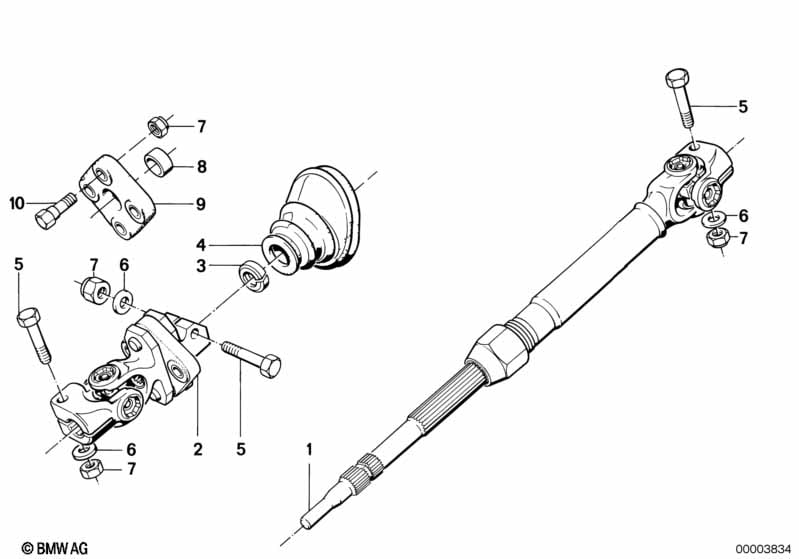

This Colonne de direct.-arbre col.direct.inf. technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ne convenant qu'avec airbag | |||||||||
| 01 | Arbre de colonne de direction inférieur | 1 | 32301156328 | $108.44 | arrêté | Shop at ECS Tuning | ||||
| 02 | Articulation | 1 | 32311150491 | $165.42 | Shop at ECS Tuning | |||||
| 03 | Douille | 1 | 32311157692 | $18.35 | Shop at ECS Tuning | |||||
| 04 | Coupelle | 1 | 32301156358 | $15.27 | Shop at ECS Tuning | |||||
| 06 | Rondelle elastique | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Ecrou à six pans autobloquant | M8-8-ZNNI SI | 7 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Douille | 1 | 32311114508 | $0.68 | Shop at ECS Tuning | |||||
| 09 | Flector | 1 | 32311115092 | $25.20 | arrêté | Shop at ECS Tuning | ||||
| 10 | Boulon d'ajustement | 4 | 32311121786 | $14.51 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 M6 Colonne de direct.-arbre col.direct.inf.?
- This technical diagram illustrates the Colonne de direct.-arbre col.direct.inf. within the Direction group for the 6 Series E24 M6 produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Arbre de colonne de direction inférieur (Part #32301156328).
- Which models use the hardware listed in this Colonne de direct.-arbre col.direct.inf.?
- The hardware and components featured in the Colonne de direct.-arbre col.direct.inf. are specific to the 6 Series E24 M6 produced during 1988. These technical specifications ensure that parts like the Arbre de colonne de direction inférieur (32301156328) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Colonne de direct.-arbre col.direct.inf. assembly?
- Each item in the Colonne de direct.-arbre col.direct.inf. corresponds to the numbered list below the illustration. For the 6 Series E24 M6, you can identify the Arbre de colonne de direction inférieur by locating its position on the schematic, which then links to the official BMW part number 32301156328 for the Direction section.
