Tube-colonne de direction rigide for BMW 3 Series E36 318ti (1999)

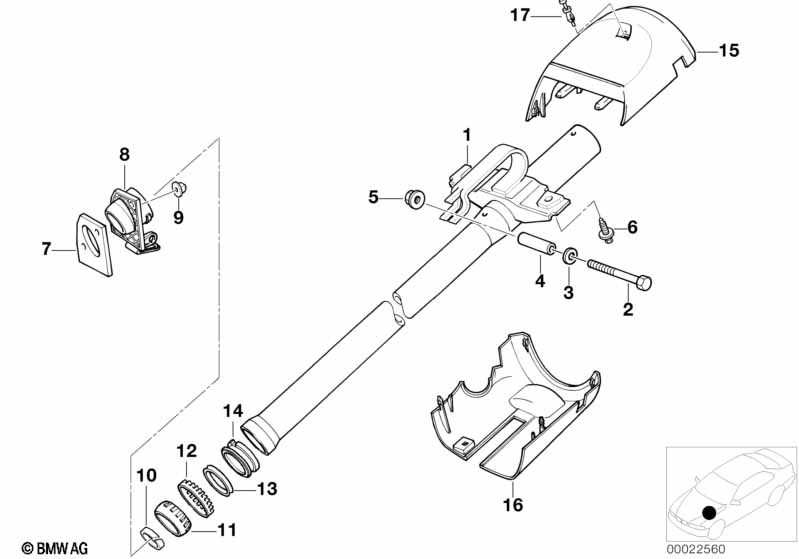

This Tube-colonne de direction rigide technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tube-colonne de direction | 1 | 06/1998 | 32311093963 | $71.10 | +vieille matière | Shop at ECS Tuning | |||
| 02 | Vis six pans | M8X80 | 1 | 06/1998 | 07119912558 | $2.89 | Shop at ECS Tuning | |||
| 03 | Plaque d'appui | 8,4X16X1,6-ZNNV | 1 | 06/1998 | 07119907030 | Shop at ECS Tuning | ||||
| 04 | Entretoise | 1 | 06/1998 | 32311161882 | $6.95 | Shop at ECS Tuning | ||||
| 05 | Ecrou à six pans autobloquant | M8-8-ZNNI SI | 1 | 06/1998 | 03/2007 | 07129906196 | $1.60 | Shop at ECS Tuning | ||
| 06 | Boulon fileté de rupture | M8X25 9.8 | 2 | 06/1998 | 32311160255 | $1.81 | Shop at ECS Tuning | |||
| 07 | Joint | 1 | 06/1998 | 32311159766 | $1.52 | Shop at ECS Tuning | ||||
| 08 | Boîtier | 1 | 06/1998 | 32311159760 | $10.59 | Shop at ECS Tuning | ||||
| 09 | Ecrou autobloquant | M8-10 ZNS3 | 2 | 06/1998 | 07119905374 | Shop at ECS Tuning | ||||
| 10 | Anneau | 1 | 06/1998 | 32311092849 | $3.40 | Shop at ECS Tuning | ||||
| 11 | Articulation à rotule | 1 | 06/1998 | 32311092847 | $1.77 | Shop at ECS Tuning | ||||
| 12 | Poele de articulation | 1 | 06/1998 | 32311159764 | $1.68 | Shop at ECS Tuning | ||||
| 13 | Bague caoutchouc | 1 | 06/1998 | 32311159763 | $1.12 | Shop at ECS Tuning | ||||
| 14 | Fermeture | 1 | 06/1998 | 32311159761 | $1.82 | Shop at ECS Tuning | ||||
| 15 | Habillage partie supérieure | 1 | 06/1998 | 32311093251 | $18.00 | Shop at ECS Tuning | ||||
| 16 | Revetement inferieur | 1 | 06/1998 | 32311161844 | $23.44 | Shop at ECS Tuning | ||||
| 17 | Agrafe | 2 | 06/1998 | 51131885399 | $0.35 | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
