Pompe d servo-direction/Direction active for BMW 5 Series E60 530i

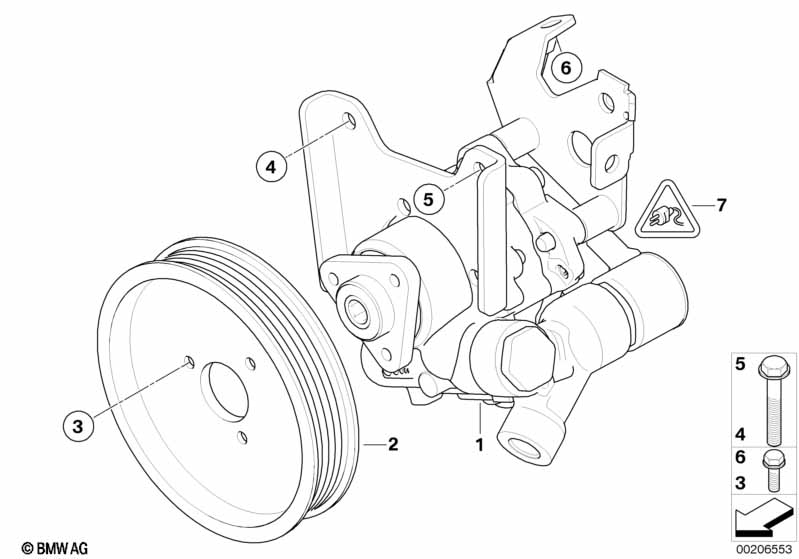

This Pompe d servo-direction/Direction active technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Direction active et Dynamic Drive |
S217A=Oui S229A=Non |
|||||||||
| 01 | Pompe de servo-direction | FP-6 ZF | 1 | 32414037948 | $1069.39 | arrêté | Shop at ECS Tuning | |||
| 02 | Poulie | D=116MM | 1 | 32427516848 | $111.75 | Shop at ECS Tuning | ||||
| 03 | Vis six pans avec rondelle | M8X14 ZNNIV SI | 3 | 09/2003 | 07119905527 | $0.47 | Shop at ECS Tuning | |||
| 03 | Vis six pans avec rondelle | M8X14-10.9 | 3 | 32427574840 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Vis six pans avec rondelle | M8X70-Z1-ZNS3 | 1 | 07119906675 | Shop at ECS Tuning | |||||
| 05 | Vis six pans avec rondelle | M8X100-U1-8.8 | 1 | 07119905403 | $1.69 | Shop at ECS Tuning | ||||
| 06 | Vis six pans avec rondelle | M8X22 | 1 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Boîtier prise courant univers.non codé | 2 POL. | 1 | 02/2005 | 61138795954 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Contact à douille MQS ELA avec câble | 0,5-0,75 MM² AG | 1 | 02/2005 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact à douille MQS ELA avec câble | 0,35-0,5 MM² AG | 1 | 02/2005 | 61130056961 | Shop at ECS Tuning | ||||
| 07 | kit de rép. boîtier femelle | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Contact à douille MQS ELA avec câble | 0,5-0,75 MM² AG | 1 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact à douille MQS ELA avec câble | 0,35-0,5 MM² AG | 1 | 61130056961 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
