Pompe d'assistance direct./Dynamic Drive for BMW 5 Series E60 530i

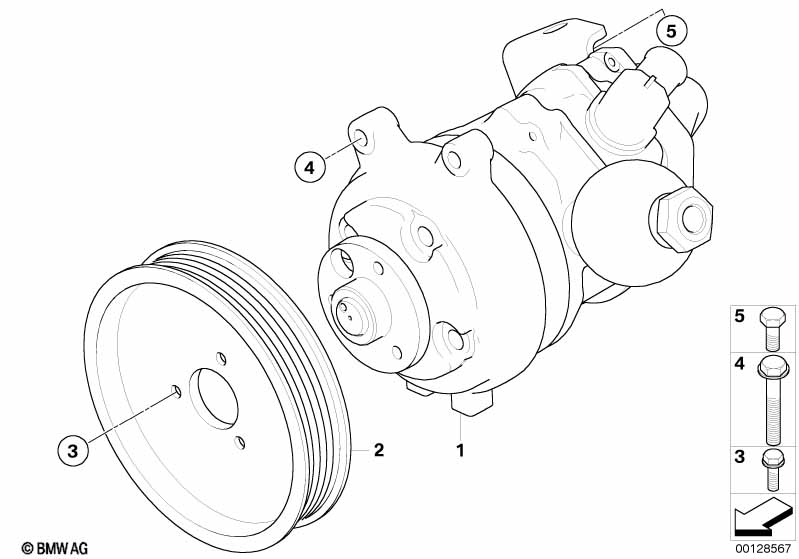

This Pompe d'assistance direct./Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Dynamic Drive et Direction active |
S229A=Oui S217A=Non |
|||||||||
| 01 | pompe tandem | LFR-440 LUK | 1 | 32416761413 | $935.73 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 02 | Poulie | D=108.5MM | 1 | 32421439232 | $185.16 | Shop at ECS Tuning | ||||
| 03 | Vis six pans avec rondelle | M8X14 ZNNIV SI | 3 | 09/2003 | 07119905527 | $0.47 | Shop at ECS Tuning | |||
| 03 | Vis six pans avec rondelle | M8X14-10.9 | 3 | 32427574840 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Vis six pans avec rondelle | M8X55-U1 | 2 | 07119905391 | $1.27 | Shop at ECS Tuning | ||||
| 05 | Vis six pans avec rondelle | M8X22 | 1 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
