Pompe direct./Dynamic Drive/Direc. activ for BMW 5 Series E60 530d (2006)

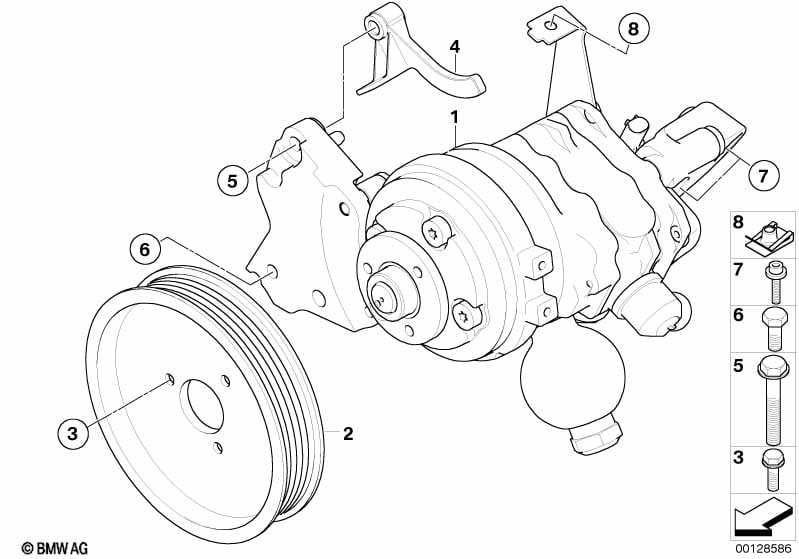

This Pompe direct./Dynamic Drive/Direc. activ technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Direction active et Dynamic Drive |
S217A=Oui S229A=Oui |
|||||||||
| 01 | pompe tandem | LFR-440 LUK | 1 | 32416781265 | +vieille matière | Shop at ECS Tuning | ||||
| 02 | Poulie | D= 141MM | 1 | 32427795298 | Shop at ECS Tuning | |||||
| 03 | Vis six pans avec rondelle | M8X14-10.9 | 3 | 32427574840 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Equerre | 1 | 32427790907 | Shop at ECS Tuning | ||||||
| 05 | Vis six pans avec rondelle | M8X80-U1-8.8 | 1 | 04/2007 | 07119906270 | $3.37 | Shop at ECS Tuning | |||
| 06 | Vis six pans | M8X50-U1-8.8 | 1 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
| 07 | Vis cylindrique avec rondelle | M8X30-U1-ZNS3 | 2 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
| 08 | C-clip ecrou | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530d Pompe direct./Dynamic Drive/Direc. activ?
- This technical diagram illustrates the Pompe direct./Dynamic Drive/Direc. activ within the Direction group for the 5 Series E60 530d produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the pompe tandem (Part #32416781265).
- Which models use the hardware listed in this Pompe direct./Dynamic Drive/Direc. activ?
- The hardware and components featured in the Pompe direct./Dynamic Drive/Direc. activ are specific to the 5 Series E60 530d produced during 2006. These technical specifications ensure that parts like the pompe tandem (32416781265) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pompe direct./Dynamic Drive/Direc. activ assembly?
- Each item in the Pompe direct./Dynamic Drive/Direc. activ corresponds to the numbered list below the illustration. For the 5 Series E60 530d, you can identify the pompe tandem by locating its position on the schematic, which then links to the official BMW part number 32416781265 for the Direction section.
