Direc.hydraul./tuyau d'huile/Direc.activ for BMW 5 Series E60 530i

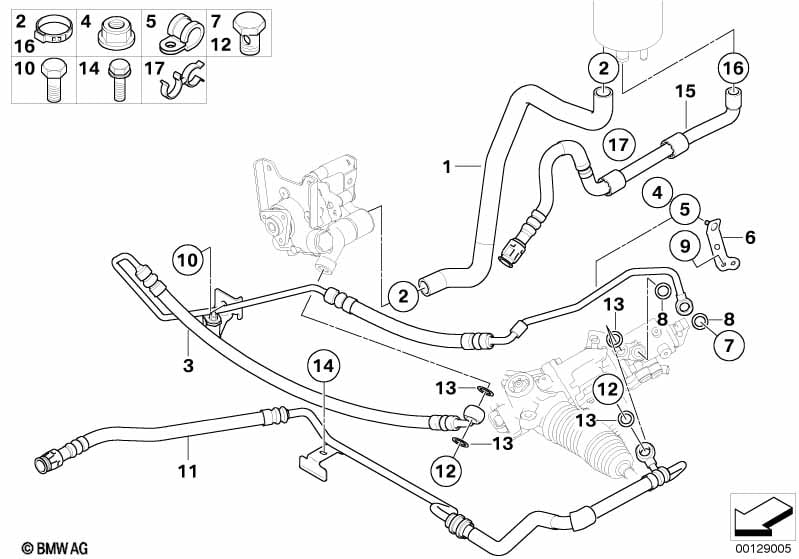

This Direc.hydraul./tuyau d'huile/Direc.activ technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Direction active et Dynamic Drive |
S217A=Oui S229A=Non |
|||||||||
| 01 | Tuyau d'aspiration direction active | 1 | 32416768396 | $49.80 | Shop at ECS Tuning | |||||
| 02 | Collier de serrage | D= 25MM | 2 | 32416763470 | $1.27 | Shop at ECS Tuning | ||||
| 03 | Tuyau de dilatation direction active | 1 | 32416771744 | $280.40 | arrêté | Shop at ECS Tuning | ||||
| 04 | Ecrou six pans avec plaque | M6-8-ZNNIV SI | 1 | 07/2007 | 07119905544 | $0.64 | Shop at ECS Tuning | |||
| 04 | Ecrou à six pans | M6-ZNS3 | 1 | 07/2007 | 07119904023 | $0.36 | arrêté | Shop at ECS Tuning | ||
| 05 | Collier | D=10/6,4 | 1 | 12141305028 | $1.58 | Shop at ECS Tuning | ||||
| 06 | Support p tuyaux de dilatation | 1 | 32416765192 | $16.30 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Direction active et Dynamic Drive Tenir compte du Manuel de réparation |
S217A=Oui S229A=Non |
|||||||||
| 07 | Vis creuse | M14X1,5X26 | 1 | 11/2004 | 32416852469 | Shop at ECS Tuning | ||||
| 07 | Vis creuse avec clapet antiretour | M14X1,5X27,4 | 1 | 10/2004 | 32416781261 | $10.02 | Shop at ECS Tuning | |||
| Pour véhicules avec Direction active et Dynamic Drive |
S217A=Oui S229A=Non |
|||||||||
| 08 | Anneau d'étanchéité | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 08 | Anneau d'étanchéité | A14X18-CUSN | 2 | 07119906464 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Vis six pans | M6X15-U1-8.8 | 1 | 07119902937 | $0.80 | Shop at ECS Tuning | ||||
| 10 | Vis six pans | M6X18MM | 1 | 32416782036 | $0.48 | Shop at ECS Tuning | ||||
| 11 | Tuyau de retour | 1 | 32416772948 | $162.10 | Shop at ECS Tuning | |||||
| 12 | Vis creuse | M16X28 | 2 | 32416852470 | Shop at ECS Tuning | |||||
| 13 | Anneau d'étanchéité | A16X22-CUSN | 4 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 14 | Vis six pans avec rondelle | M6X20 | 1 | 07/2007 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 14 | Vis six pans avec rondelle | M6X20-U1-ZNS3 | 1 | 07119903849 | $1.05 | arrêté | Shop at ECS Tuning | |||
| 15 | Conduite de retour du réservoir | 1 | 32416761514 | $61.87 | arrêté | Shop at ECS Tuning | ||||
| 16 | Collier de serrage | 1 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 17 | Support de tuyau | D=18/D=25 | 1 | 08/2003 | 12511309471 | $1.50 | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
