Direc.hydraul./tuyau d'huile/Direc.activ for BMW 5 Series E60 530d (2006)

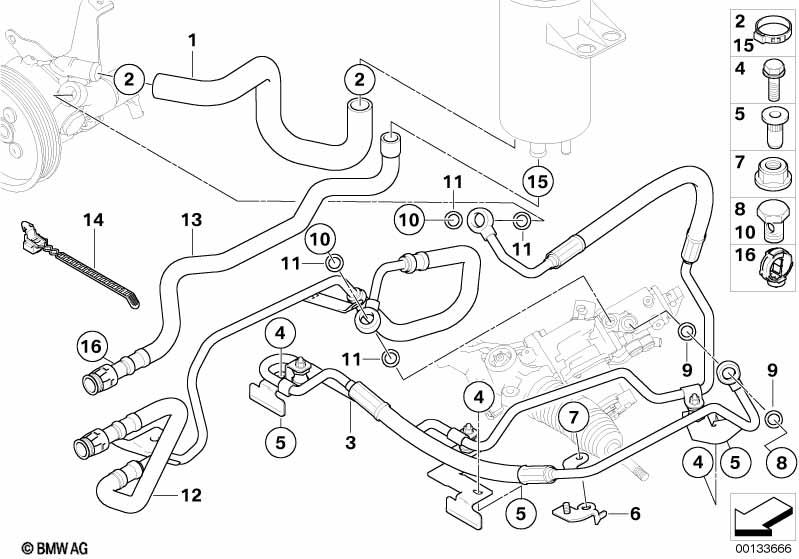

This Direc.hydraul./tuyau d'huile/Direc.activ technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Direction active et Dynamic Drive |
S217A=Oui S229A=Non |
|||||||||
| 01 | Tuyau d'aspiration direction active | 1 | 32416850097 | Shop at ECS Tuning | ||||||
| 02 | Collier de serrage | D= 25MM | 2 | 32416763470 | $1.27 | Shop at ECS Tuning | ||||
| 03 | Tuyau de dilatation direction active | 1 | 32416761507 | +vieille matière | Shop at ECS Tuning | |||||
| 04 | Vis six pans avec rondelle | M6X20 | 3 | 07/2007 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 04 | Vis six pans avec rondelle | M6X20-U1-ZNS3 | 3 | 07119903849 | $1.05 | arrêté | Shop at ECS Tuning | |||
| 05 | Ecrou faux rivet à tête plate | M6 | 3 | 03/2007 | 07146989330 | $1.25 | Shop at ECS Tuning | |||
| 06 | Gousset, console | 1 | 32416761541 | $4.62 | Shop at ECS Tuning | |||||
| 07 | Ecrou six pans avec plaque | M6-8-ZNNIV SI | 1 | 07/2007 | 07119905544 | $0.64 | Shop at ECS Tuning | |||
| Pour véhicules avec Direction active et Dynamic Drive Tenir compte du Manuel de réparation |
S217A=Oui S229A=Non |
|||||||||
| 08 | Vis creuse avec clapet antiretour | M14X1,5X27,4 | 1 | 10/2004 | 32416781261 | $10.02 | Shop at ECS Tuning | |||
| Pour véhicules avec Direction active et Dynamic Drive |
S217A=Oui S229A=Non |
|||||||||
| 09 | Anneau d'étanchéité | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 09 | Anneau d'étanchéité | A14X18-CUSN | 2 | 07119906464 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Vis creuse | M16X28 | 2 | 32416852470 | Shop at ECS Tuning | |||||
| 11 | Anneau d'étanchéité | A16X22-CUSN | 4 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Tuyau de retour | 1 | 32416766145 | +vieille matière | Shop at ECS Tuning | |||||
| 13 | Conduite de retour du réservoir | 1 | 32416761499 | +vieille matière | Shop at ECS Tuning | |||||
| 15 | Collier de serrage | 1 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 16 | Support de tuyau | 1 | 11/2003 | 32416767170 | $0.62 | Shop at ECS Tuning | ||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530d Direc.hydraul./tuyau d'huile/Direc.activ?
- This technical diagram illustrates the Direc.hydraul./tuyau d'huile/Direc.activ within the Direction group for the 5 Series E60 530d produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Tuyau d'aspiration direction active (Part #32416850097).
- Which models use the hardware listed in this Direc.hydraul./tuyau d'huile/Direc.activ?
- The hardware and components featured in the Direc.hydraul./tuyau d'huile/Direc.activ are specific to the 5 Series E60 530d produced during 2006. These technical specifications ensure that parts like the Tuyau d'aspiration direction active (32416850097) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Direc.hydraul./tuyau d'huile/Direc.activ assembly?
- Each item in the Direc.hydraul./tuyau d'huile/Direc.activ corresponds to the numbered list below the illustration. For the 5 Series E60 530d, you can identify the Tuyau d'aspiration direction active by locating its position on the schematic, which then links to the official BMW part number 32416850097 for the Direction section.
