Volant de direct.Airbag-Smart multifonct for BMW 7 Series E65 750i (2008)

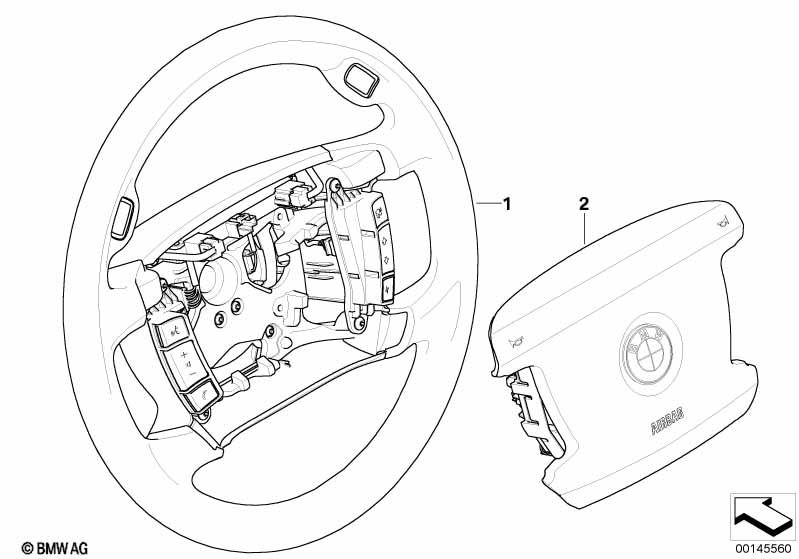

This Volant de direct.Airbag-Smart multifonct technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Volant en cuir | BEIGE | 1 | 03/2005 | 32346783501 | $699.31 | Shop at ECS Tuning | |||
| 01 | Volant en cuir | SCHWARZ | 1 | 09/2005 | 32346783500 | $699.31 | arrêté | Shop at ECS Tuning | ||
| 01 | Volant en cuir | GRAU | 1 | 09/2005 | 32346783502 | $842.76 | Shop at ECS Tuning | |||
| Pour véhicules avec Volant chauffant |
S248A=Oui |
|||||||||
| 01 | Volant en cuir | SCHWARZ | 1 | 03/2005 | 32306782087 | $827.22 | Shop at ECS Tuning | |||
| 01 | Volant en cuir | BEIGE | 1 | 03/2005 | 32306782088 | $827.22 | arrêté | Shop at ECS Tuning | ||
| 01 | Volant en cuir | GRAU | 1 | 03/2005 | 32306782089 | $712.47 | arrêté | Shop at ECS Tuning | ||
| 02 | Module d'airbag conducteur | SCHWARZ | 1 | 03/2005 | 32346773685 | $889.45 | arrêté | Shop at ECS Tuning | ||
| 02 | Module d'airbag conducteur | BEIGE | 1 | 03/2005 | 32346773686 | $889.45 | arrêté | Shop at ECS Tuning | ||
| 02 | Module d'airbag conducteur | GRAU | 1 | 03/2005 | 32346773687 | $889.45 | arrêté | Shop at ECS Tuning | ||
Note
- arrêté = la pièce n'est plus produite.
