Fixat.bride de transm/anneau de garnitur for BMW 3 Series E21 316 (1977)

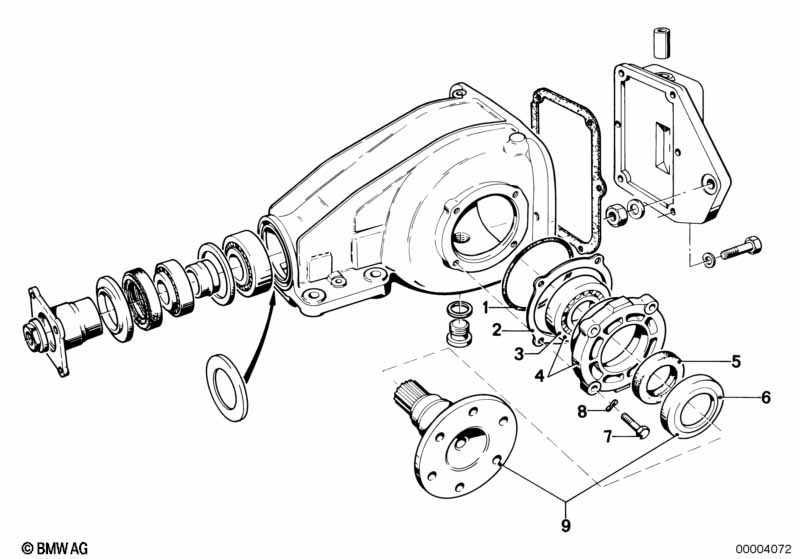

This Fixat.bride de transm/anneau de garnitur technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint torique | 81X2 | 2 | 08/1979 | 33113604119 | $3.06 | arrêté | Shop at ECS Tuning | ||
| 02 | Rondelle entretoise | 0,280MM | 2 | 08/1979 | 33133604215 | $12.45 | arrêté | Shop at ECS Tuning | ||
| 02 | Rondelle entretoise | 0,380MM | 2 | 08/1979 | 33133604216 | $12.45 | arrêté | Shop at ECS Tuning | ||
| 02 | Rondelle entretoise | 0,500MM | 2 | 08/1979 | 33133604217 | $3.50 | arrêté | Shop at ECS Tuning | ||
| 02 | Rondelle entretoise | 0,630MM | 2 | 08/1979 | 33133604218 | $3.50 | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 0,750MM | 2 | 08/1979 | 33133604219 | $12.45 | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 0,880MM | 2 | 08/1979 | 33133604220 | $3.53 | arrêté | Shop at ECS Tuning | ||
| 02 | Rondelle entretoise | 0,100MM | 2 | 08/1979 | 33133604221 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 0,150MM | 2 | 08/1979 | 33133604222 | $1.74 | arrêté | Shop at ECS Tuning | ||
| 03 | Roulement à bille cônique | 41,2X73,4X19,5 | 2 | 08/1979 | 33131205117 | Shop at ECS Tuning | ||||
| 04 | Cache de palier | 2 | 08/1979 | 33111200066 | $153.44 | Shop at ECS Tuning | ||||
| 05 | Joint d'arbre | 54X38X10 | 2 | 08/1979 | 33121205302 | Shop at ECS Tuning | ||||
| 06 | Disque anti-poussiere | 68,5MM | 2 | 08/1979 | 33131200613 | $18.97 | Shop at ECS Tuning | |||
| 07 | Vis six pans | M8X25-8.8-ZNNIV | 8 | 08/1979 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 07 | Vis six pans | M8X25 | 8 | 08/1979 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 08 | Rondelle elastique | 8,4X15-ZNS3 | 8 | 08/1979 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 09 | Bride de transmission sortie | 2 | 08/1979 | 33131204931 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 316 Fixat.bride de transm/anneau de garnitur?
- This technical diagram illustrates the Fixat.bride de transm/anneau de garnitur within the Essieu arrière group for the 3 Series E21 316 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Joint torique (Part #33113604119).
- Which models use the hardware listed in this Fixat.bride de transm/anneau de garnitur?
- The hardware and components featured in the Fixat.bride de transm/anneau de garnitur are specific to the 3 Series E21 316 produced during 1977. These technical specifications ensure that parts like the Joint torique (33113604119) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fixat.bride de transm/anneau de garnitur assembly?
- Each item in the Fixat.bride de transm/anneau de garnitur corresponds to the numbered list below the illustration. For the 3 Series E21 316, you can identify the Joint torique by locating its position on the schematic, which then links to the official BMW part number 33113604119 for the Essieu arrière section.
