Suspension du pont arriere for BMW 5 Series E34 520i (1992)

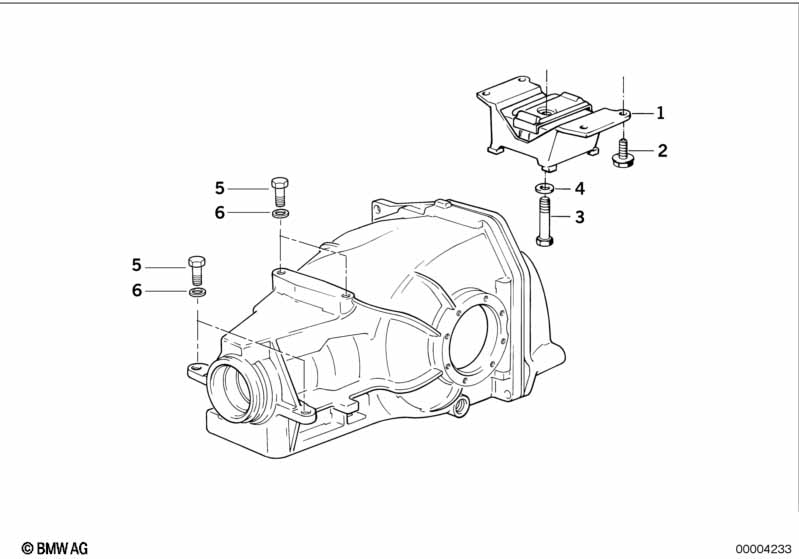

This Suspension du pont arriere technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Silentbloc | 1 | 33171133555 | Shop at ECS Tuning | ||||||
| 02 | Vis six pans | M10X20 | 4 | 33331132413 | $1.11 | Shop at ECS Tuning | ||||
| 03 | Vis six pans | M12X1,5X77 | 1 | 07119914684 | $2.09 | Shop at ECS Tuning | ||||
| 04 | Plaque d'appui | 13X34X6 | 1 | 33171130835 | Shop at ECS Tuning | |||||
| 05 | Vis six pans | M12X1,5X25 | 4 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Rondelle | 12-300 HV-ZNS3 | 4 | 07119904119 | $0.25 | Shop at ECS Tuning |
