Support de l'essieu arriere for BMW 7 Series E38 750iLS (1995)

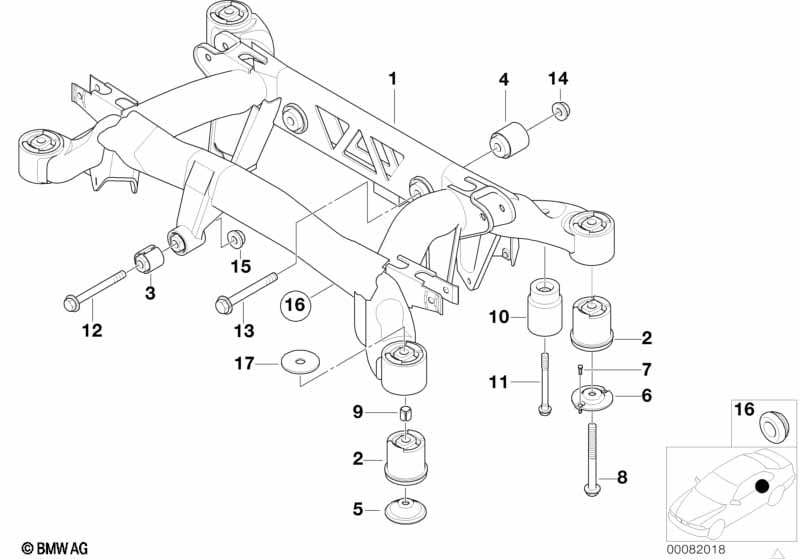

This Support de l'essieu arriere technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support de l'essieu arriere | 1 | 33311091731 | arrêté | Shop at ECS Tuning | |||||
| 02 | Silentbloc | 4 | 33311090956 | $76.91 | Shop at ECS Tuning | |||||
| 03 | Silentbloc avant | 1 | 33171090389 | $18.93 | Shop at ECS Tuning | |||||
| 04 | Silentbloc arriere | 2 | 33171090089 | $26.77 | Shop at ECS Tuning | |||||
| 05 | Butée | 2 | 33311092415 | Shop at ECS Tuning | ||||||
| 06 | Butée arrière | 2 | 33311092416 | $4.35 | Shop at ECS Tuning | |||||
| 07 | Boulon | M8X18 ZNS3 | 2 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 08 | Vis six pans avec rondelle | M14X1,5X133 | 4 | 33311092591 | $4.05 | Shop at ECS Tuning | ||||
| 09 | Goupille de serrage | 18X24 | 2 | 33311090291 | $2.03 | Shop at ECS Tuning | ||||
| 10 | Amortisseur de vibration | ORANGE | 1 | 33311092147 | $44.79 | Shop at ECS Tuning | ||||
| 10 | Amortisseur de vibration | BLAU | 1 | 33311092256 | $44.79 | Shop at ECS Tuning | ||||
| 11 | Vis à collet | M12X1,5X65 | 2 | 33321091100 | $1.45 | Shop at ECS Tuning | ||||
| 13 | Vis six pans | M12X1,5X87 | 2 | 33171090386 | $1.72 | Shop at ECS Tuning | ||||
| 14 | Ecrou à six pans | M12X1,5 | 3 | 33171090387 | $0.66 | Shop at ECS Tuning | ||||
| 15 | Ecrou combiné | M14X1,5-10ZNS3 | 1 | 05/1999 | 33326760380 | $2.48 | Shop at ECS Tuning | |||
| ne convenant qu'avec CABLE BOWDEN DE PEDALE DE FREIN PARC G. |
||||||||||
| 16 | Manchon caoutchouc | D=22MM | 1 | 34411160117 | $1.03 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
