Capteur de regl.de niveau jambe de susp. for BMW 5 Series E39 530d (2002)

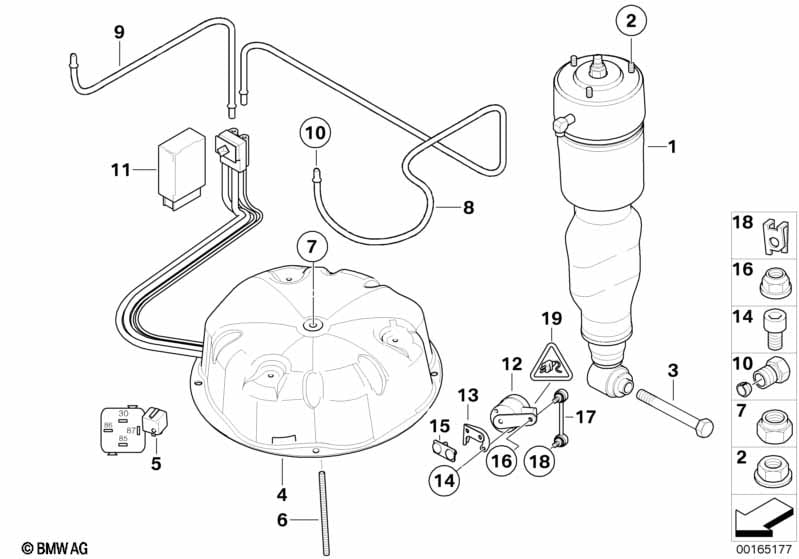

This Capteur de regl.de niveau jambe de susp. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ES jambe de suspension pneum.arr. | 2 | 37121093919 | $670.43 | Shop at ECS Tuning | |||||
| 02 | Ecrou autobloquant | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Vis six pans | M14X1,5X100 | 2 | 07/2003 | 33521092072 | $1.92 | Shop at ECS Tuning | |||
| 03 | Vis six pans | M14X1,5X105 | 2 | 33506779488 | $4.09 | Shop at ECS Tuning | ||||
| 04 | Alimentation d'air | 1 | 37226787616 | $807.75 | Shop at ECS Tuning | |||||
| 05 | Relais vert blanc | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 06 | Tringle fileté | 1 | 71151092320 | $2.70 | Shop at ECS Tuning | |||||
| 07 | Ecrou à six pans autobloquant | M6-10 ZN | 2 | 07/2003 | 07129922705 | $0.27 | arrêté | Shop at ECS Tuning | ||
| 07 | Ecrou à six pans autobloquant | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Tuyau de pièce de distribution gauche | 1 | 37131092405 | $6.62 | Shop at ECS Tuning | |||||
| 09 | Tuyau de pièce de distribution droit | 1 | 37131092406 | $6.03 | arrêté | Shop at ECS Tuning | ||||
| 10 | Raccord filete | D=4MM | 4 | 37221092403 | $3.00 | Shop at ECS Tuning | ||||
| 11 | Boîtier de commande d'alimentation d'air | 1 | 37146874414 | Shop at ECS Tuning | ||||||
| uniquement en combinaison avec | ||||||||||
| -- | Bande de feutre auto-adhésive | 130X40X3 MM | 1 | 54347248700 | $1.38 | Shop at ECS Tuning | ||||
| 12 | Capteur de niveau | 2 | 08/1996 | 37146784697 | $97.68 | Shop at ECS Tuning | ||||
| Pour véhicules avec Phare xénon |
S522A=Oui |
|||||||||
| 12 | Capteur de niveau | 1 | 37146784697 | $97.68 | Shop at ECS Tuning | |||||
| 13 | Support de capteur de niveau gauche | 1 | 08/1996 | 33311094061 | $6.00 | Shop at ECS Tuning | ||||
| 13 | Support de capteur de niveau droit | 1 | 08/1996 | 33311093703 | $4.73 | Shop at ECS Tuning | ||||
| 14 | Vis cylindrique | M5X10-8.8-ZNNIV | 4 | 07119904303 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Plaque filetee | 2 | 33311093516 | $3.24 | Shop at ECS Tuning | |||||
| 16 | Ecrou six pans avec plaque | M6-8-ZNNIV SI | 6 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 17 | Barre de réglage | 71,5MM | 2 | 37146752797 | $6.18 | Shop at ECS Tuning | ||||
| 18 | Clip | 2 | 33311093654 | $0.17 | Shop at ECS Tuning | |||||
| 19 | Contact à douille MQS avec câble | 0,2- 0,5 QMM | 6 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 530d Capteur de regl.de niveau jambe de susp.?
- This technical diagram illustrates the Capteur de regl.de niveau jambe de susp. within the Essieu arrière group for the 5 Series E39 530d produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the ES jambe de suspension pneum.arr. (Part #37121093919).
- Which models use the hardware listed in this Capteur de regl.de niveau jambe de susp.?
- The hardware and components featured in the Capteur de regl.de niveau jambe de susp. are specific to the 5 Series E39 530d produced during 2002. These technical specifications ensure that parts like the ES jambe de suspension pneum.arr. (37121093919) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Capteur de regl.de niveau jambe de susp. assembly?
- Each item in the Capteur de regl.de niveau jambe de susp. corresponds to the numbered list below the illustration. For the 5 Series E39 530d, you can identify the ES jambe de suspension pneum.arr. by locating its position on the schematic, which then links to the official BMW part number 37121093919 for the Essieu arrière section.
