Pièces pour pont arrière for BMW 1500-2000CS 1800 (1968)

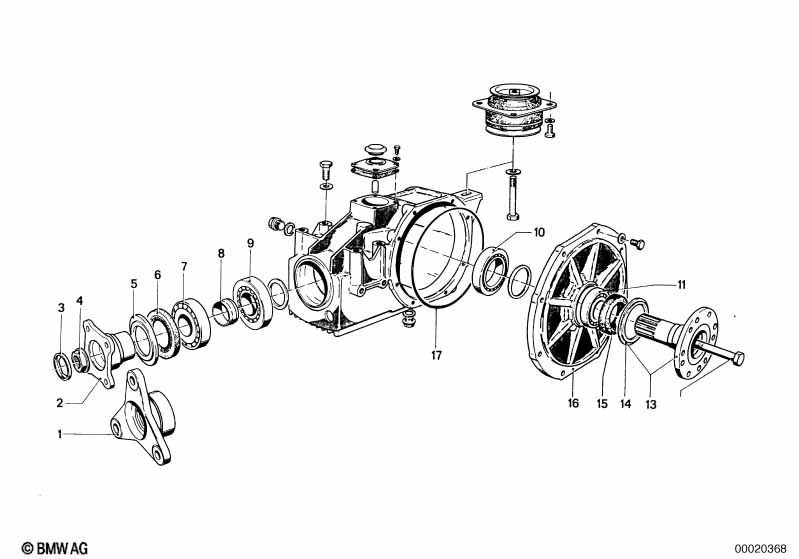

This Pièces pour pont arrière technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Bride d'entraînement | 1 | 09/1965 | 01/1972 | 33121200282 | arrêté | Shop at ECS Tuning | |||
| 03 | Plaque de securite | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 04 | Ecrou à collet | 1 | 09/1963 | 01/1972 | 33113604190 | arrêté | Shop at ECS Tuning | |||
| 04 | Ecrou à collet | M20X1,5 | 1 | 09/1965 | 01/1972 | 33121200258 | $8.56 | Shop at ECS Tuning | ||
| 05 | Disque anti-poussiere | 81MM | 1 | 33121200284 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Joint d'arbre | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| 07 | Roulement à bille cônique | 31,7X73,0X29,3 | 1 | 33121204312 | Shop at ECS Tuning | |||||
| 08 | Douille de serrage | 1 | 33121744368 | $9.14 | Shop at ECS Tuning | |||||
| 09 | Roulement à bille cônique | 1 | 33121204315 | Shop at ECS Tuning | ||||||
| 10 | Roulement à bille cônique | 2 | 33131204568 | Shop at ECS Tuning | ||||||
| 11 | Roulement à rainure | 160 06 | 2 | 07119981720 | arrêté | Shop at ECS Tuning | ||||
| 12 | Vis six pans | M12X1,5X100 | 2 | 07119914670 | arrêté | Shop at ECS Tuning | ||||
| 13 | Bride de transmission | 2 | 33211200325 | arrêté | Shop at ECS Tuning | |||||
| 14 | Disque anti-poussiere | 61MM | 2 | 33413704139 | $1.02 | arrêté | Shop at ECS Tuning | |||
| 15 | Joint d'arbre | 2 | 33121210295 | Shop at ECS Tuning | ||||||
| 16 | Couvercle de carter | 1 | 33111206165 | arrêté | Shop at ECS Tuning | |||||
| 17 | Joint torique | 1 | 33113704163 | $5.14 | Shop at ECS Tuning | |||||
| 17 | Joint torique | 1 | 33111204119 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
