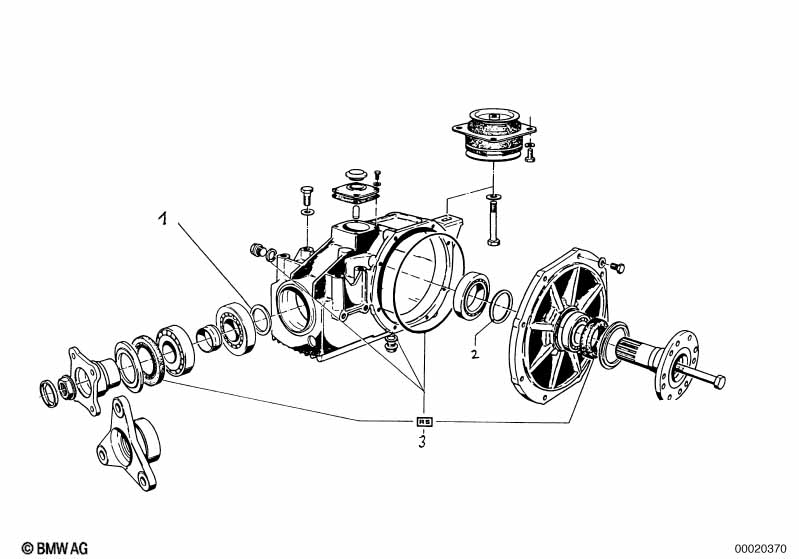

Couronne de differ.et bagues entretoise for BMW 1500-2000CS 1800 (1968)
This Couronne de differ.et bagues entretoise technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rondelle entretoise | 3,10 | X | 33121200510 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,15 | X | 33121200511 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,20 | X | 33121200512 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,25 | X | 33121200513 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,30 | X | 33121200514 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,35 | X | 33121200515 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,400MM | X | 33121200516 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,450MM | X | 33121200517 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,500MM | X | 33121200518 | $5.47 | arrêté | Shop at ECS Tuning | |||
| 01 | Rondelle entretoise | 3,530MM | X | 33121200519 | $5.47 | arrêté | Shop at ECS Tuning | |||
| 01 | Rondelle entretoise | 3,560MM | X | 33121200520 | $5.47 | arrêté | Shop at ECS Tuning | |||
| 01 | Rondelle entretoise | 3,590MM | X | 33121200521 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,62 | X | 33121200522 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,65 | X | 33121200523 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,68 | X | 33121200524 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,71 | X | 33121200525 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,74 | X | 33121200526 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,77 | X | 33121200527 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,80 | X | 33121200528 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,83 | X | 33121200529 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,86 | X | 33121200530 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,89 | X | 33121200531 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,92 | X | 33121200532 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,95 | X | 33121200533 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 3,98 | X | 33121200534 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 4,01 | X | 33121200535 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 4,04 | X | 33121200536 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 4,07 | X | 33121200537 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 4,10 | X | 33121200538 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 4,130MM | X | 33121200539 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 4,160MM | X | 33121200540 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 4,190MM | X | 33121200541 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 4,220MM | X | 33121200542 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 4,250MM | X | 33121200543 | $5.19 | arrêté | Shop at ECS Tuning | |||
| 01 | Rondelle entretoise | 4,280MM | X | 33121200544 | $5.19 | arrêté | Shop at ECS Tuning | |||
| 01 | Rondelle entretoise | 4,310MM | X | 33121200545 | $5.19 | arrêté | Shop at ECS Tuning | |||
| 01 | Rondelle entretoise | 4,350MM | X | 33121200546 | $5.19 | arrêté | Shop at ECS Tuning | |||
| 01 | Rondelle entretoise | 4,400MM | X | 33121200547 | $5.19 | arrêté | Shop at ECS Tuning | |||
| 01 | Rondelle entretoise | 4,450MM | X | 33121200548 | arrêté | Shop at ECS Tuning | ||||
| 01 | Rondelle entretoise | 4,500MM | X | 33121200549 | $5.47 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,000MM | X | 33133704300 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,020MM | X | 33133704301 | $1.74 | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,040MM | X | 33133704302 | $1.15 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,060MM | X | 33133704303 | $1.15 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,080MM | X | 33133704304 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,100MM | X | 33133704305 | $1.55 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,120MM | X | 33133704306 | $1.74 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,140MM | X | 33133704307 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,160MM | X | 33133704308 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,180MM | X | 33133704309 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,300MM | X | 33133704310 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,320MM | X | 33133704311 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,340MM | X | 33133704312 | $3.79 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,360MM | X | 33133704313 | $2.00 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,380MM | X | 33133704314 | $11.80 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,700MM | X | 33133704315 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,720MM | X | 33133704316 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,740MM | X | 33133704317 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,760MM | X | 33133704318 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,780MM | X | 33133704319 | $3.79 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,800MM | X | 33133704320 | $1.37 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,820MM | X | 33133704321 | $1.37 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,840MM | X | 33133704322 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,860MM | X | 33133704323 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,880MM | X | 33133704324 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,900MM | X | 33133704325 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,920MM | X | 33133704326 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,940MM | X | 33133704327 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,960MM | X | 33133704328 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,980MM | X | 33133704329 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,200MM | X | 33133704330 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,220MM | X | 33133704331 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,240MM | X | 33133704332 | $1.37 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,260MM | X | 33133704333 | $1.67 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,280MM | X | 33133704334 | $1.67 | arrêté | Shop at ECS Tuning | |||
| 02 | Rondelle entretoise | 1,400MM | X | 33133704335 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,420MM | X | 33133704336 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,440MM | X | 33133704337 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,460MM | X | 33133704338 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,480MM | X | 33133704339 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,500MM | X | 33133704340 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,520MM | X | 33133704341 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,540MM | X | 33133704342 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,560MM | X | 33133704343 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,580MM | X | 33133704344 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,600MM | X | 33133704345 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,620MM | X | 33133704346 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,640MM | X | 33133704347 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,660MM | X | 33133704348 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle entretoise | 1,680MM | X | 33133704349 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
