Capteur de plaquette de frein arrière for BMW 5 Series E12 528 (1975)

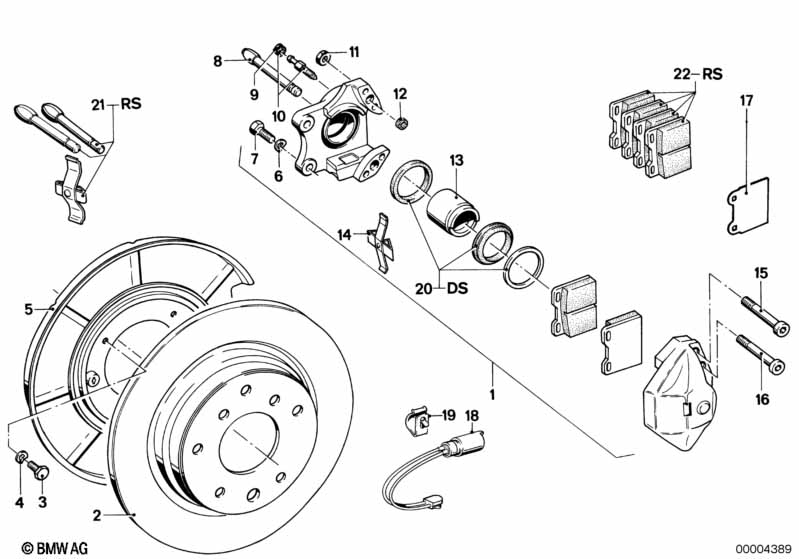

This Capteur de plaquette de frein arrière technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Etrier de freins gauche sans plaquettes | 1 | 34211150275 | $574.08 | Shop at ECS Tuning | |||||
| 01 | Etrier de frein SA.ca.de freinage droite | 1 | 34211150276 | $574.08 | arrêté | Shop at ECS Tuning | ||||
| 01 | Neces etrier de frein es gauche et droit | 1 | 34219058599 | arrêté | Shop at ECS Tuning | |||||
| 02 | Disque de frein | 272X10 | 2 | 34211163131 | $103.83 | Shop at ECS Tuning | ||||
| 02 | Disque de frein | 272X10 | 2 | 34211163132 | $103.83 | arrêté | Shop at ECS Tuning | |||
| 03 | Vis six pans | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Rondelle élastique noire | B6-ZN | 4 | 07/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 04 | Plaque d'appui | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Tole de protection gauche | 1 | 34211100578 | $23.35 | Shop at ECS Tuning | |||||
| 05 | Tole de protection droite | 1 | 34211150326 | $23.35 | arrêté | Shop at ECS Tuning | ||||
| 06 | Rondelle elastique | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 07 | Vis six pans | M10X24 10.9 | 4 | 34211104997 | $1.73 | Shop at ECS Tuning | ||||
| 09 | Clapet à poussière | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 10 | Soupape de dépression d'air | 2 | 34211103211 | $5.59 | Shop at ECS Tuning | |||||
| 11 | Ecrou | 4 | 34211108776 | $3.39 | arrêté | Shop at ECS Tuning | ||||
| 13 | Piston | 2 | 34211103210 | Shop at ECS Tuning | ||||||
| 15 | Vis | 2 | 34211108773 | $3.39 | arrêté | Shop at ECS Tuning | ||||
| 16 | Vis | 2 | 34211108774 | $3.39 | arrêté | Shop at ECS Tuning | ||||
| 17 | Tôle de protection | 4 | 34211116006 | $7.17 | arrêté | Shop at ECS Tuning | ||||
| 18 | Palpeur d'usure garnitures de freins | 1 | 34351179821 | $10.93 | Shop at ECS Tuning | |||||
| 19 | Agrafe de fixation de câbles | D=10-12MM | 2 | 61131361897 | $0.42 | arrêté | Shop at ECS Tuning | |||
| 20 | Jeu de joints etrier de frein | 1 | 34211103482 | $24.88 | arrêté | Shop at ECS Tuning | ||||
| 21 | Necessaire de montage | 1 | 34211113665 | $20.44 | Shop at ECS Tuning | |||||
| 22 | Kit rép. garnitures de freins s. amiante | TEXTAR T477 | 1 | 34211159265 | $54.20 | Shop at ECS Tuning | ||||
| 22 | Kit rép. garnitures de freins s. amiante | TEXTAR POLITEX | 1 | 34211159267 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
