Tuyau de frein avant for BMW 3 Series E21 320 (1979)

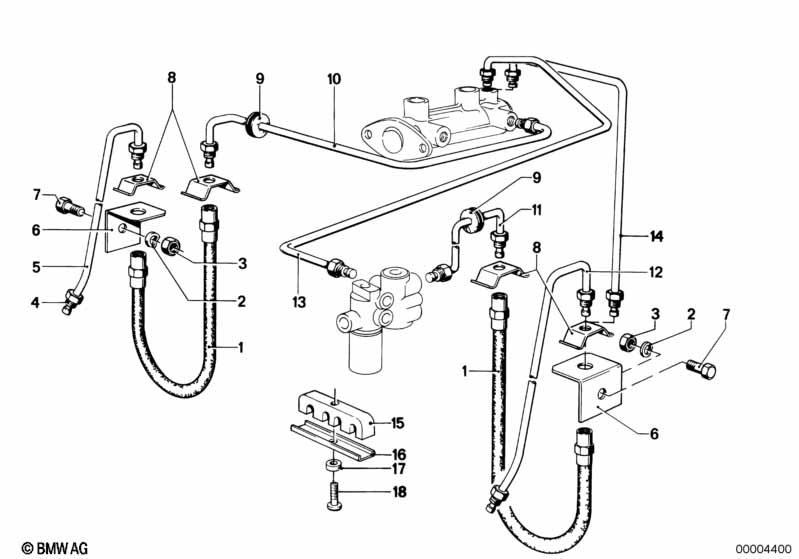

This Tuyau de frein avant technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flexible de frein | 2 | 08/1977 | 34321159879 | $45.23 | Shop at ECS Tuning | ||||
| 02 | Rondelle élastique noire | B6-ZN | 2 | 08/1977 | 09/1983 | 07119932073 | $0.38 | Shop at ECS Tuning | ||
| 02 | Plaque d'appui | 5.3-140 HV-ZNS | 2 | 08/1977 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 03 | Ecrou à six pans autobloquant | M6-10 ZN | 2 | 08/1977 | 09/1983 | 07129922705 | $0.27 | arrêté | Shop at ECS Tuning | |
| 03 | Ecrou à six pans autobloquant | M6 ZNNIV SI | 2 | 08/1977 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 04 | Ecrou à capuchon | M10X1 | X | 08/1977 | 34321151806 | $1.22 | arrêté | Shop at ECS Tuning | ||
| 05 | Tuyau | M10/M10-330MM | 1 | 08/1977 | 34326755562 | $7.60 | arrêté | Shop at ECS Tuning | ||
| 06 | Support | 1 | 08/1977 | 34321116022 | $0.43 | Shop at ECS Tuning | ||||
| 06 | Support gauche | 1 | 08/1977 | 34321150303 | $1.50 | arrêté | Shop at ECS Tuning | |||
| 07 | Vis six pans | M6X12-8.8-ZNNIV | 2 | 08/1977 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 08 | Ressort de fixation | 4 | 08/1977 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 09 | Manchon caoutchouc | 2 | 08/1977 | 34321102417 | $6.03 | arrêté | Shop at ECS Tuning | |||
| 10 | Tuyau | M10/M10-560MM | 1 | 08/1977 | 34326755582 | $7.60 | Shop at ECS Tuning | |||
| 11 | Tuyau | M10/M10-490MM | 1 | 08/1977 | 34326755578 | $7.60 | Shop at ECS Tuning | |||
| 12 | Tuyau | M10/M10-330MM | 1 | 08/1977 | 34326755562 | $7.60 | arrêté | Shop at ECS Tuning | ||
| 13 | Tuyau | M10/M10-1705MM | 1 | 08/1977 | 08/1979 | 34326755636 | $10.03 | Shop at ECS Tuning | ||
| 15 | Collier | 4 | 08/1977 | 34321108261 | $0.61 | arrêté | Shop at ECS Tuning | |||
| 16 | Support | 4 | 08/1977 | 34321155737 | $0.48 | arrêté | Shop at ECS Tuning | |||
| 17 | Entretoise | 3 | 08/1977 | 34321108306 | $0.61 | Shop at ECS Tuning | ||||
| 18 | Vis auto filetante | 4 | 08/1977 | 34321119239 | $0.27 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
