Tuyau de frein avant for BMW 5 Series E12 528 (1975)

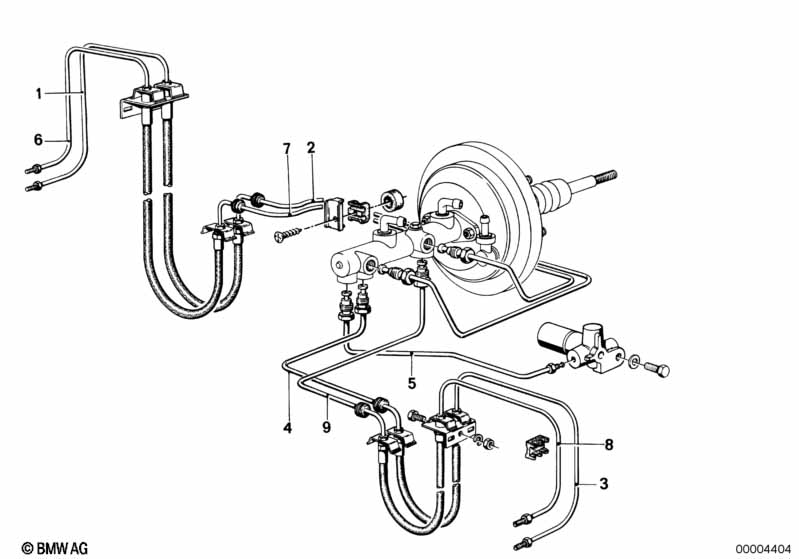

This Tuyau de frein avant technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| CIRCUIT 1 | ||||||||||
| 01 | Tuyau | M10/M10-340MM | 1 | 01/1976 | 34326755563 | $7.60 | Shop at ECS Tuning | |||
| 02 | Tuyau | M10/M10-1705MM | 1 | 01/1976 | 34326755636 | $10.03 | Shop at ECS Tuning | |||
| 03 | Tuyau | M10/M10-340MM | 1 | 01/1976 | 34326755563 | $7.60 | Shop at ECS Tuning | |||
| 04 | Tuyau | M10/M10-490MM | 1 | 01/1976 | 34326755578 | $7.60 | Shop at ECS Tuning | |||
| 05 | Tuyau | M10/M10-340MM | 1 | 01/1976 | 34326755563 | $7.60 | Shop at ECS Tuning | |||
| CIRCUIT 2 | ||||||||||
| 06 | Tuyau | M10/M10-360MM | 1 | 01/1976 | 34326755565 | $7.60 | Shop at ECS Tuning | |||
| 07 | Tuyau | M10/M10 | 1 | 01/1976 | 34326772492 | $9.12 | Shop at ECS Tuning | |||
| 08 | Tuyau | M10/M10-360MM | 1 | 01/1976 | 34326755565 | $7.60 | Shop at ECS Tuning | |||
| 09 | Tuyau | M10/M10-470MM | 1 | 01/1976 | 34326755576 | $7.60 | Shop at ECS Tuning | |||
