Servo-frein/Fixation for BMW 5 Series E12 528 (1975)

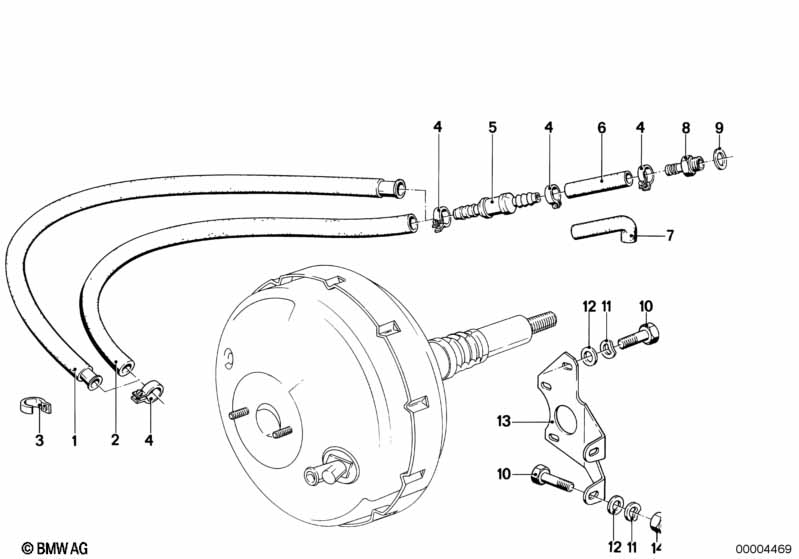

This Servo-frein/Fixation technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tuyau de depression | 1 | 34331113188 | arrêté | Shop at ECS Tuning | |||||
| 02 | Tuyau de depression | 12X19 | X | 34331115926 | $28.71 | +vieille matière | Shop at ECS Tuning | |||
| 03 | Collier | 1 | 17221115867 | $0.96 | arrêté | Shop at ECS Tuning | ||||
| 03 | Collier | 1 | 34331110005 | arrêté | Shop at ECS Tuning | |||||
| 04 | Collier | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 05 | Valve antiretour | 1 | 34331151533 | Shop at ECS Tuning | ||||||
| 07 | Raccord | 1 | 34331116003 | $7.57 | Shop at ECS Tuning | |||||
| 08 | Raccord | 1 | 34331102538 | $18.21 | arrêté | Shop at ECS Tuning | ||||
| 09 | Anneau d'étanchéité | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Vis six pans | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Rondelle elastique | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Plaque d'appui | 6 | 11614000131 | $1.80 | arrêté | Shop at ECS Tuning | ||||
| 13 | Support | 1 | 34331110843 | arrêté | Shop at ECS Tuning | |||||
| 14 | Ecrou à six pans | M8-8-ZNS3 | 4 | 06/1981 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Ecrou à six pans | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
