Frein à main/machoires de freins for BMW 3 Series E36 318i (1999)

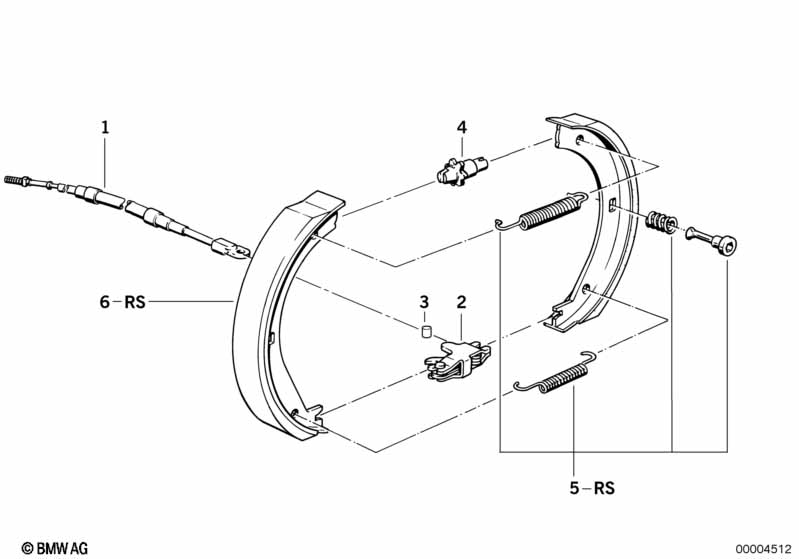

This Frein à main/machoires de freins technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Les pièces suivantes sont impérativement nécessaires pour le remplacement des segments de frein : Kit de réparation ressorts Mécanisme d'écartement Vis de réglage |
|||||||||
| 01 | Cable a tirette | 2 | 34411160134 | $40.64 | Shop at ECS Tuning | |||||
| 02 | Levier | 2 | 34416868624 | Shop at ECS Tuning | ||||||
| uniquement en combinaison avec | ||||||||||
| -- | Boulon | 2 | 34411100640 | $1.67 | Shop at ECS Tuning | |||||
| 03 | Boulon | 2 | 34411100640 | $1.67 | Shop at ECS Tuning | |||||
| 04 | Vis d'ajustement | 2 | 34416851438 | Shop at ECS Tuning | ||||||
| 05 | Necessaire de reparation pour ressorts | 1 | 34419064274 | $17.56 | Shop at ECS Tuning | |||||
| 06 | Jeu réparation machoires frein s.amiante | 1 | 34416761289 | $92.33 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Grande-Bretagne |
L812A=Oui |
|||||||||
| 06 | Jeu réparation machoires frein s.amiante | 1 | 34416761289 | $92.33 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
