Frein de roue arrière-frein à tambour for BMW 1500-2000CS 1800 (1971)
This Frein de roue arrière-frein à tambour technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 230 / 250 mm | |||||||||
| 01 | Rivet | 2 | 34213660164 | $2.25 | Shop at ECS Tuning | |||||
| 02 | Rondelle elastique | 10,5 / 18 | 2 | 34211117860 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Rondelle entretoise | 2 | 34213660163 | $1.27 | Shop at ECS Tuning | |||||
| 04 | Machoire de frein sans amiante gauche | 250MM JURID 580 | 1 | 02/1962 | 06/1975 | 34211159586 | $36.59 | arrêté | Shop at ECS Tuning | |

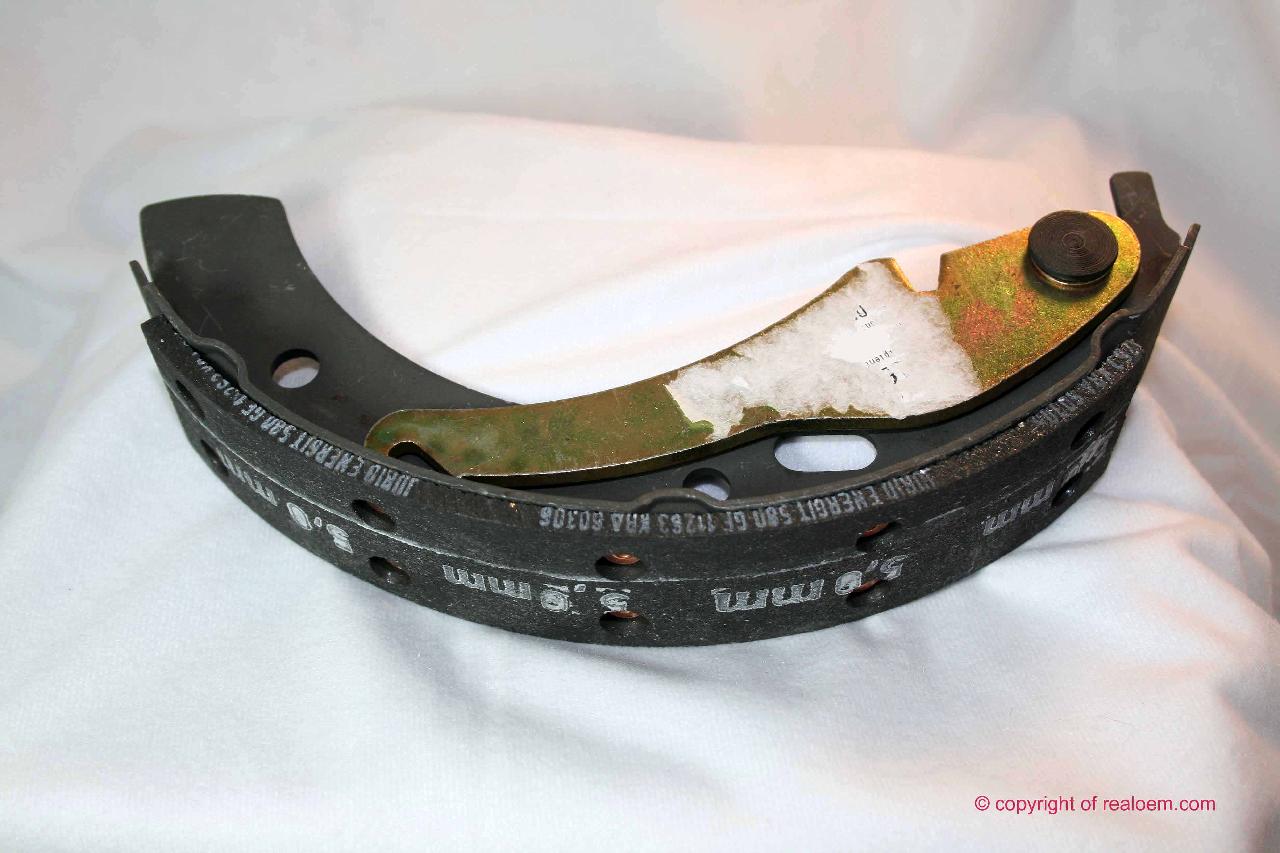

| 04 | Machoire de frein sans amiante droit | 250MM JURID 580 | 1 | 02/1962 | 06/1975 | 34211159587 | $36.59 | Shop at ECS Tuning | ||
| 06 | Goupille de serrage | 4 | 02/1962 | 06/1975 | 34211116477 | $5.90 | Shop at ECS Tuning | |||
| 07 | Ressort de pression | 4 | 02/1962 | 06/1975 | 34211116476 | $1.50 | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Frein de roue arrière-frein à tambour?
- This technical diagram illustrates the Frein de roue arrière-frein à tambour within the Freins group for the 1500-2000CS 1800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Rivet (Part #34213660164).
- Which models use the hardware listed in this Frein de roue arrière-frein à tambour?
- The hardware and components featured in the Frein de roue arrière-frein à tambour are specific to the 1500-2000CS 1800 produced during 1971. These technical specifications ensure that parts like the Rivet (34213660164) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Frein de roue arrière-frein à tambour assembly?
- Each item in the Frein de roue arrière-frein à tambour corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Rivet by locating its position on the schematic, which then links to the official BMW part number 34213660164 for the Freins section.
